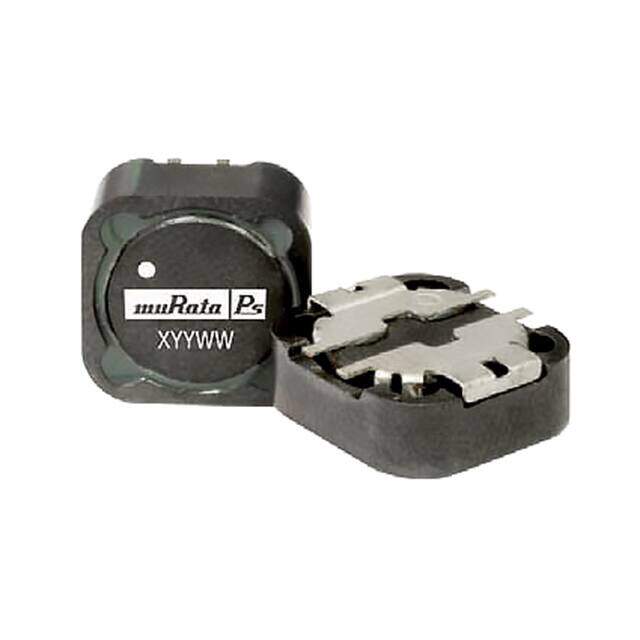

47101SC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard, 4 Lead
Category Inductors, Coils, Chokes / Fixed Inductors
Description
4700S Nonstandard 4Lead 0.480Lx0.480W 12.20mmx12.20mm 100muH
PDF
/
Inventory: 3614
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.197 5.00mm
Height 5mm
Technical
Special Feature Q MEASURED AT 0.8 MHZ
Q @ Freq 20 @ 800kHz
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 8MHz
Max DC Current 1.3A
DC Resistance (DCR) 267mOhm Max
Test Frequency 10kHz
Inductance 100μH
Current Rating 1.3A
Depth 12.5mm
Number of Functions 1
Shielding YES
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.480Lx0.480W 12.20mmx12.20mm
Series 4700S
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape ONE SURFACE
Package / Case Nonstandard, 4 Lead
Mounting Type Surface Mount
Mount Surface Mount
