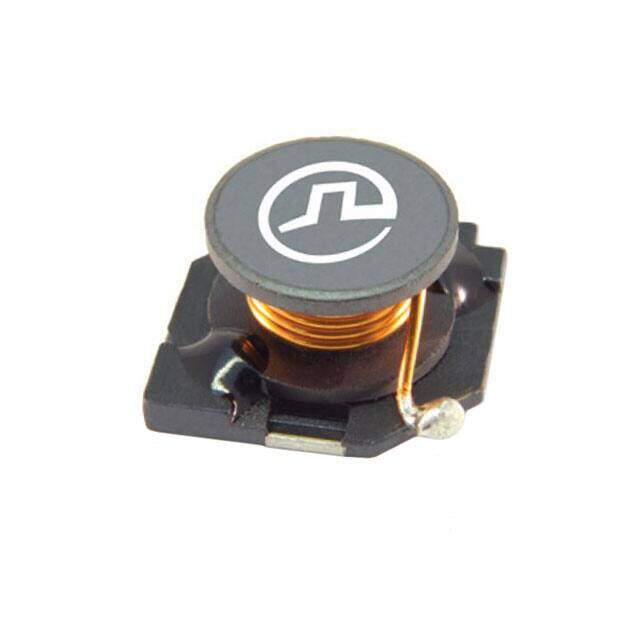

45103C
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
4500 Nonstandard 0.287Lx0.287W 7.30mmx7.30mm 10muH
PDF
/
Buying Options
Total Price: USD $0.81
Unit Price: USD $0.8056
≥1 USD $0.8056
≥10 USD $0.6612
≥100 USD $0.6403
≥500 USD $0.62035
≥1000 USD $0.59945
Inventory: 39539
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height Seated (Max) 0.140 3.55mm
Height 3.55mm
Technical
RMS Current (Irms) 2.2A
DC Current 2.2A
Inductance Tolerance 20%
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 2.2A
DC Resistance (DCR) 82mOhm Max
Test Frequency 10kHz
Inductance 10μH
Military Standard Not
Current Rating 2.2A
Depth 7.5mm
Number of Functions 1
Shielding YES
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.287Lx0.287W 7.30mmx7.30mm
Series 4500
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Number of Pins 2
Terminal Shape ONE SURFACE
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
