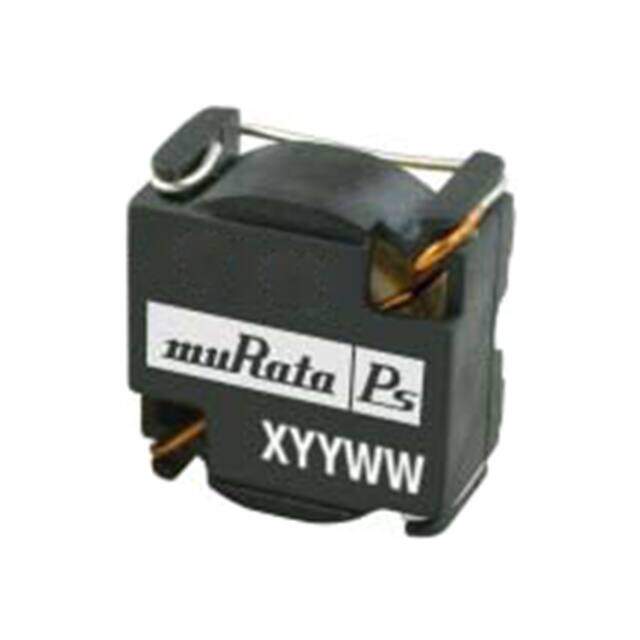

40680C
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
4000 Nonstandard 0.560Lx0.555W 14.22mmx14.10mm 68muH
PDF
/
Inventory: 10045
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape ONE SURFACE
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series 4000
Size / Dimension 0.560Lx0.555W 14.22mmx14.10mm
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Toroidal
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Depth 14.1mm
Current Rating 1.2A
Inductance 68μH
Test Frequency 10kHz
Terminal Placement DUAL ENDED
Inductor Application DC-DC CONVERTER
Max DC Current 1.2A
DC Resistance (DCR) 148mOhm Max
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.345 8.76mm
Height 8.76mm

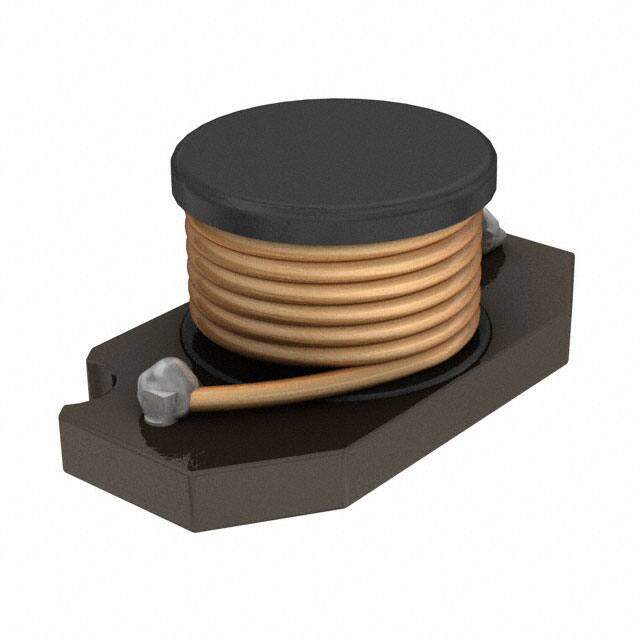

Alternative Model
