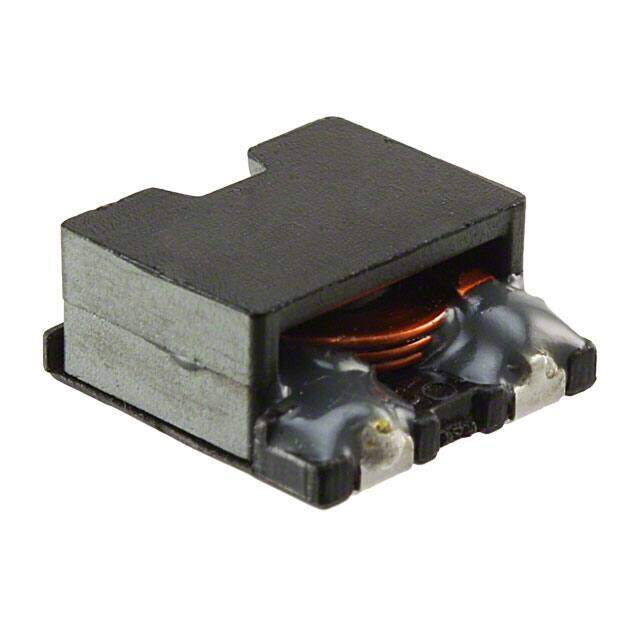

39S822C
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
3900 Nonstandard 0.508Lx0.508W 12.90mmx12.90mm 8.2muH
PDF
/
Buying Options
Total Price: USD $1.51
Unit Price: USD $1.51497
≥1 USD $1.51497
≥10 USD $1.42922
≥100 USD $1.34832
≥500 USD $1.272
≥1000 USD $1.2
≥3000 USD $1.13208
Inventory: 6008
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Cut Tape (CT)
Series 3900
Size / Dimension 0.508Lx0.508W 12.90mmx12.90mm
Tolerance ±20%
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Current Rating 5.8A
Inductance 8.2μH
Test Frequency 100kHz
DC Resistance (DCR) 11.4mOhm Max
Max DC Current 5.8A
Inductor Application POWER INDUCTOR
Terminal Placement DUAL IN-LINE
Case/Size Code 5151
Inductance Tolerance 20%
RMS Current (Irms) 5.8A
Dimensions
Height 5.8mm
Height Seated (Max) 0.228 5.80mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
