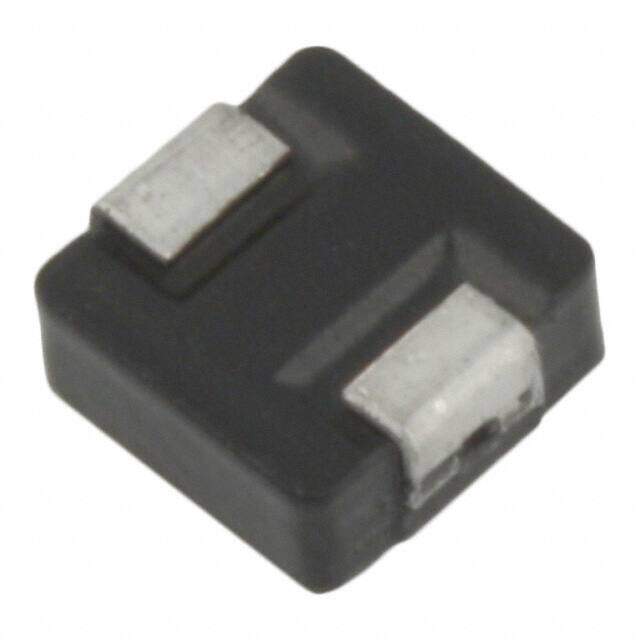

HCM0703-8R2-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
HCM0703 Nonstandard 0.280Lx0.260W 7.10mmx6.60mm 8.2muH
PDF
/
Buying Options
Total Price: USD $1.34
Unit Price: USD $1.3376
≥1 USD $1.3376
≥10 USD $1.12904
≥100 USD $1.02608
≥500 USD $0.96448
≥1000 USD $0.80036
≥3000 USD $0.738778
Inventory: 1158
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Weight 453.59237mg
Material - Core Iron Powder
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2014
Series HCM0703
Size / Dimension 0.280Lx0.260W 7.10mmx6.60mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Composition Wirewound
Current Rating (Amps) 4A
Shielding Shielded
Depth 7mm
Current Rating 4A
Military Standard Not
Inductance 8.2μH
Test Frequency 100kHz
DC Resistance (DCR) 68mOhm Max
Max DC Current 7.5A
Inductance Frequency - Test 100kHz
Current - Saturation 7.5A
Inductance Tolerance 20%
DC Current 4A
RMS Current (Irms) 4A
Self Resonant Frequency 5MHz
Dimensions
Height 3mm
Height Seated (Max) 0.118 3.00mm
Length 7.4mm
Width 6.604mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
