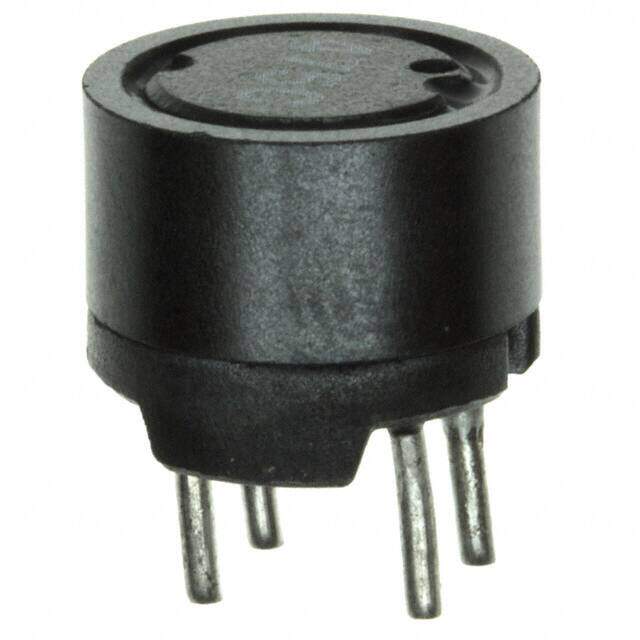

12RS474C
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder, 4 Leads
Category Inductors, Coils, Chokes / Fixed Inductors
Description
1200RS Radial Vertical Cylinder 4Leads 0.413Dia 10.50mm 470muH
PDF
/
Buying Options
Total Price: USD $0.69
Unit Price: USD $0.686877
≥1 USD $0.686877
≥10 USD $0.647996
≥100 USD $0.611323
≥500 USD $0.576721
≥1000 USD $0.544074
Inventory: 1155
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Plating Tin
Mount Radial, Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder, 4 Leads
Number of Pins 4
Shape/Size Description CYLINDRICAL PACKAGE
Core Material FERRITE
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series 1200RS
Size / Dimension 0.413Dia 10.50mm
Tolerance ±15%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Termination Radial
ECCN Code EAR99
Type Wirewound
Shielding YES
Number of Functions 1
Current Rating 720mA
Lead Pitch 5mm
Inductance 470μH
Test Frequency 10kHz
DC Resistance (DCR) 980mOhm Max
Max DC Current 720mA
Inductor Application POWER INDUCTOR
Lead/Base Style Pin
Inductance Tolerance 15%
RMS Current (Irms) 530mA
Saturation Current 530mA
Dimensions
Diameter 10.5mm
Height 10.5mm
Height Seated (Max) 0.335 8.50mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
