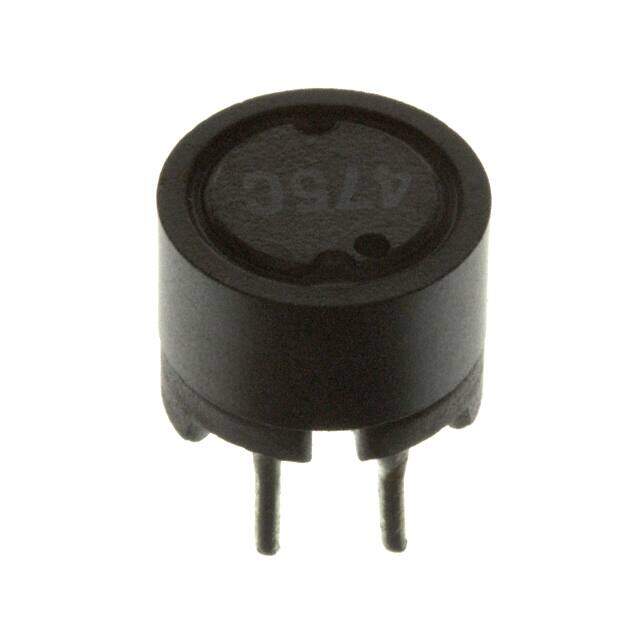

12LRS475C
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder, 4 Leads
Category Inductors, Coils, Chokes / Fixed Inductors
Description
1200LRS Radial Vertical Cylinder 4Leads 0.413Dia 10.50mm 4.7mH
PDF
/
Inventory: 4912
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Plating Tin
Mount Radial, Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder, 4 Leads
Number of Pins 4
Shape/Size Description CYLINDRICAL PACKAGE
Core Material FERRITE
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series 1200LRS
Size / Dimension 0.413Dia 10.50mm
Tolerance ±15%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Type Wirewound
Shielding YES
Number of Functions 1
Current Rating 180mA
Lead Pitch 5mm
Inductance 4.7mH
Test Frequency 10kHz
DC Resistance (DCR) 10.5Ohm Max
Max DC Current 180mA
Inductor Application POWER INDUCTOR
Lead/Base Style Pin
Inductance Tolerance 15%
Dimensions
Diameter 10.5mm
Height 8.5mm
Height Seated (Max) 0.335 8.50mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
