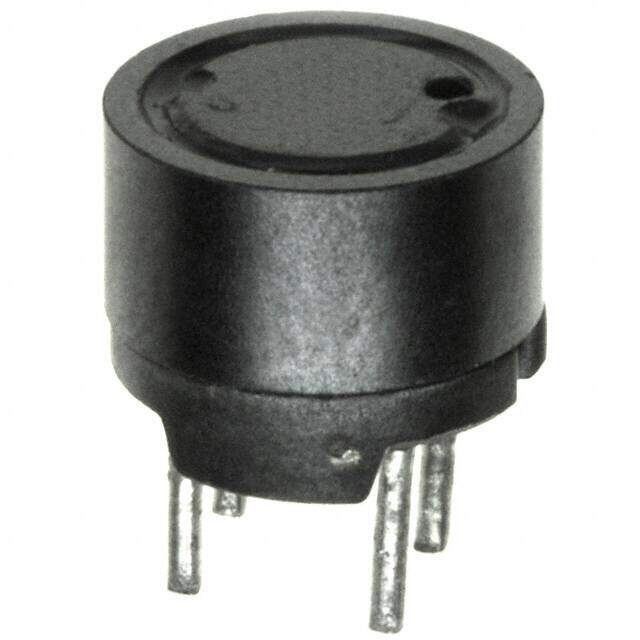

12LRS106C
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder, 4 Leads
Category Inductors, Coils, Chokes / Fixed Inductors
Description
1200LRS Radial Vertical Cylinder 4Leads 0.413Dia 10.50mm 10mH
PDF
/
Buying Options
Total Price: USD $0.62
Unit Price: USD $0.6248
≥1 USD $0.6248
≥10 USD $0.616
≥100 USD $0.6072
≥500 USD $0.5984
≥1000 USD $0.5632
≥3000 USD $0.528
Inventory: 169
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height Seated (Max) 0.335 8.50mm
Height 8.5mm
Diameter 10.5mm
Technical
Saturation Current 120mA
RMS Current (Irms) 120mA
Inductance Tolerance 15%
Lead/Base Style Pin
Inductor Application POWER INDUCTOR
Max DC Current 120mA
DC Resistance (DCR) 24Ohm Max
Test Frequency 10kHz
Inductance 10mH
Lead Pitch 5mm
Current Rating 120mA
Number of Functions 1
Shielding YES
Type Wirewound
ECCN Code EAR99
Termination Radial
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±15%
Size / Dimension 0.413Dia 10.50mm
Series 1200LRS
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Core Material FERRITE
Shape/Size Description CYLINDRICAL PACKAGE
Number of Pins 4
Package / Case Radial, Vertical Cylinder, 4 Leads
Mounting Type Through Hole
Mount Radial, Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 11 Weeks
