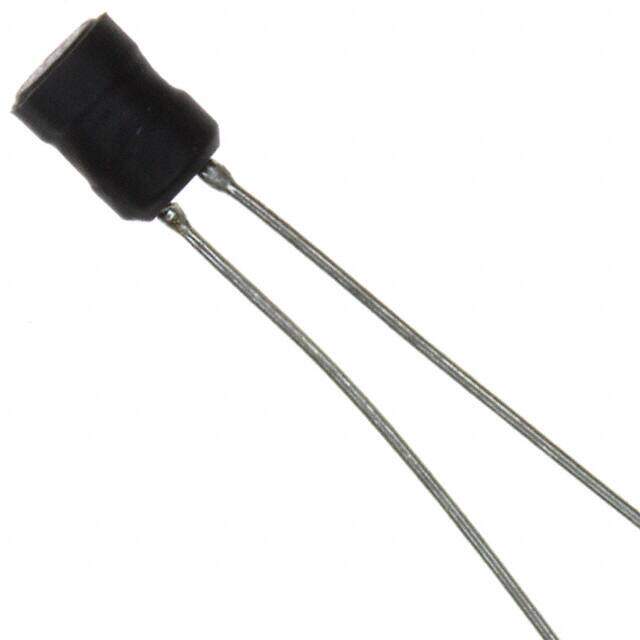

11R683C
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description
1100R Radial Vertical Cylinder 0.197Dia 5.00mm 68muH
PDF
/
Buying Options
Total Price: USD $0.26
Unit Price: USD $0.2552
≥1 USD $0.2552
≥10 USD $0.2464
≥100 USD $0.2376
≥500 USD $0.2288
≥1000 USD $0.2112
≥3000 USD $0.2024
Inventory: 400
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Number of Pins 2
Shape/Size Description CYLINDRICAL PACKAGE
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series 1100R
Size / Dimension 0.197Dia 5.00mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Current Rating 400mA
Lead Pitch 2mm
Inductance 68μH
Test Frequency 1kHz
DC Resistance (DCR) 850mOhm Max
Max DC Current 400mA
Inductor Application POWER INDUCTOR
Lead/Base Style Radial
Inductance Tolerance 10%
RMS Current (Irms) 400mA
Saturation Current 400mA
Dimensions
Diameter 5mm
Height 7.5mm
Height Seated (Max) 0.295 7.50mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free

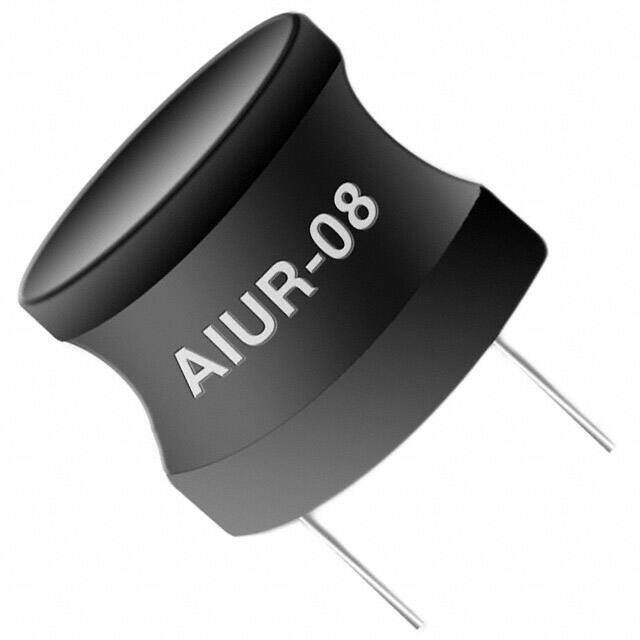

Alternative Model
