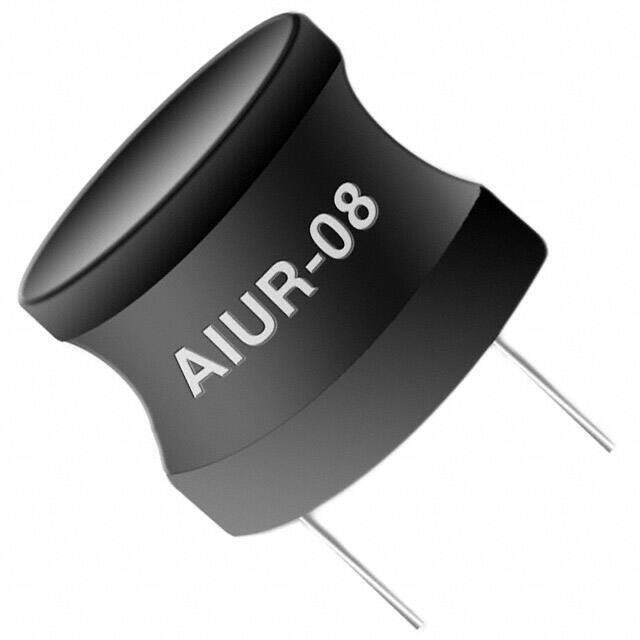

AIUR-08-680K
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description
AIUR-08 Radial Vertical Cylinder 0.433Dia 11.00mm 68muH
PDF
/
Inventory: 4518
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Material - Core Ferrite
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2007
Series AIUR-08
Size / Dimension 0.433Dia 11.00mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Type Wirewound
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 2.1A
Shielding Unshielded
Current Rating 2.1A
Lead Pitch 4mm
Lead Diameter 600 μm
Inductance 68μH
Test Frequency 2.52MHz
DC Resistance (DCR) 120mOhm Max
Max DC Current 600mA
Lead/Base Style Radial
Inductance Frequency - Test 2.52MHz
Dimensions
Height 10mm
Height Seated (Max) 0.433 11.00mm
Length 10mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
