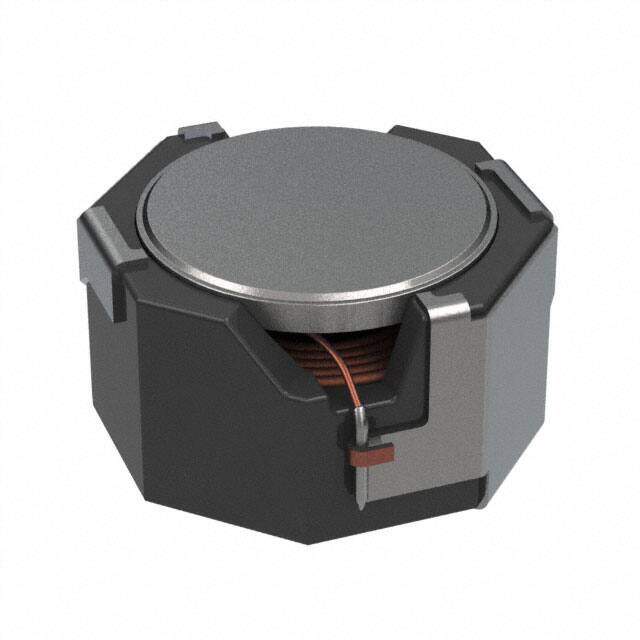

MDH12577C-471MA=P3
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
MDH12577C Nonstandard 0.504Lx0.492W 12.80mmx12.50mm 470muH
PDF
/
Buying Options
Total Price: USD $1.68
Unit Price: USD $1.680967
≥1 USD $1.680967
≥10 USD $1.585813
≥100 USD $1.496052
≥500 USD $1.411367
≥1000 USD $1.331486
Inventory: 1131
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.315 8.00mm
Technical
Rated Current-Max 0.7A
Current - Saturation 1A
Inductance Frequency - Test 100kHz
Terminal Placement DUAL ENDED
DC Resistance (DCR) 540mOhm
Test Frequency 0.1MHz
Inductance 470μH
Number of Functions 1
Shielding Unshielded
Current Rating (Amps) 700mA
Type Wirewound
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Not For New Designs
Tolerance ±20%
Size / Dimension 0.504Lx0.492W 12.80mmx12.50mm
Series MDH12577C
Packaging Tape & Reel (TR)
Operating Temperature -55°C~150°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Lifecycle Status NRND (Last Updated: 1 month ago)

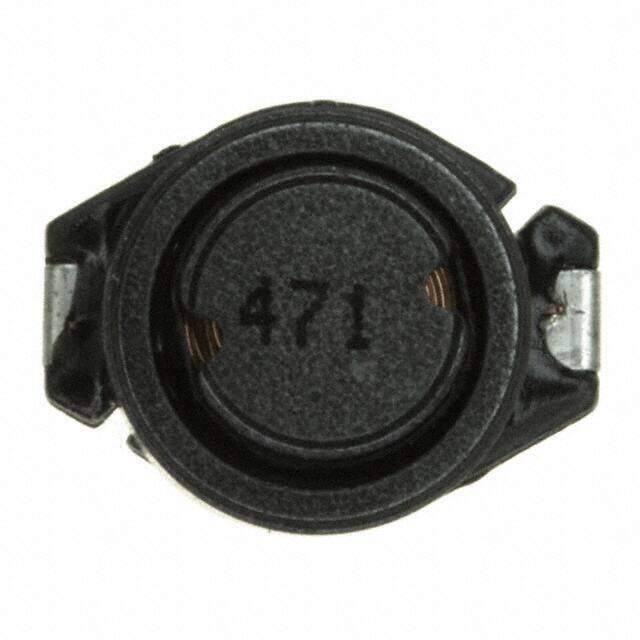

Alternative Model
