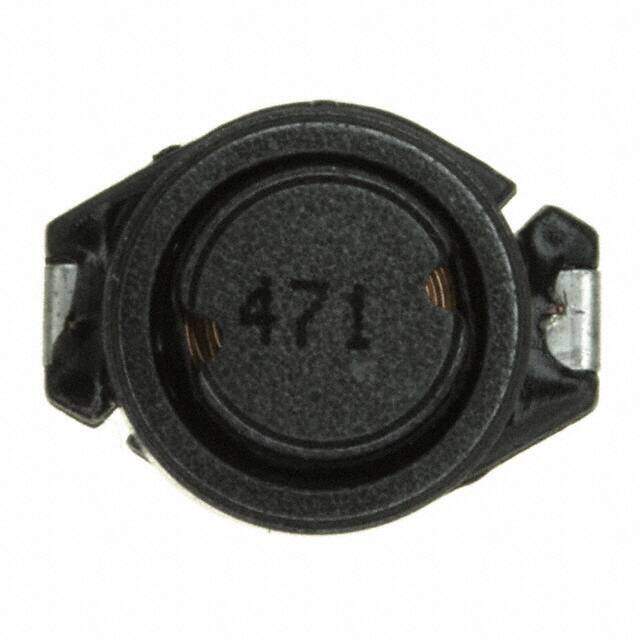

SDS850R-474M
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Wirewound Active Lead Free Fixed Inductor -40C~85C 1kHz 2.25Ohm Max 470muH
PDF
/
Inventory: 2759
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Weight 950mg
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2010
Series SDS850R
Size / Dimension 0.413Lx0.315W 10.50mmx8.00mm
Tolerance ±20%
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin/Silver/Copper (Sn95.5Ag3.8Cu0.7)
HTS Code 8504.50.80.00
Packing Method TR, 13 Inch
Shielding YES
Number of Functions 1
Depth 8.2mm
Construction RECTANGULAR PACKAGE
Current Rating 200mA
Inductance 470μH
Test Frequency 1kHz
DC Resistance (DCR) 2.25Ohm Max
Max DC Current 200mA
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Case/Size Code 4132
Dimensions
Height 4.8mm
Height Seated (Max) 0.189 4.80mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free

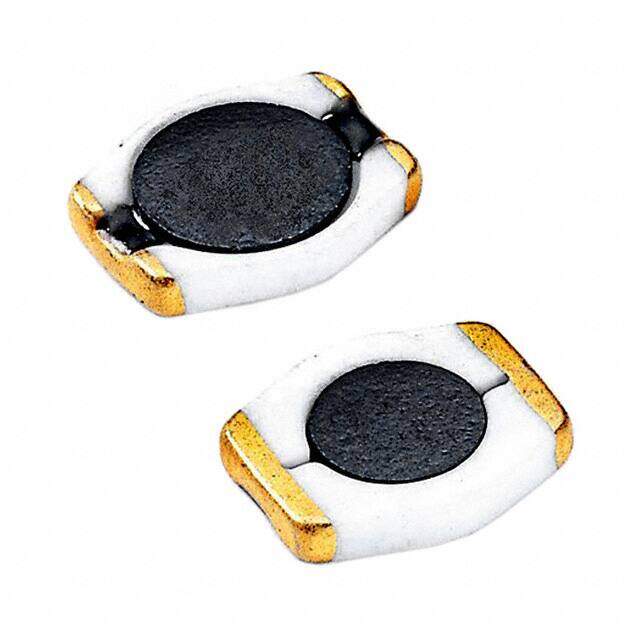

Alternative Model
