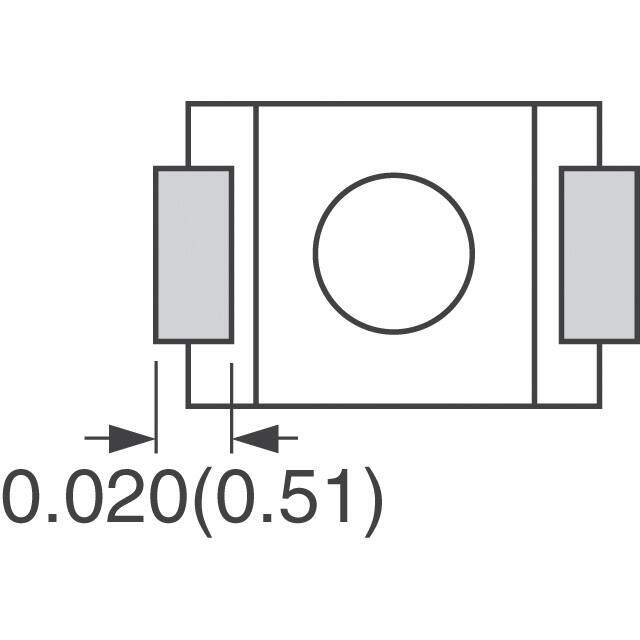

LQW2UASR56J0CL image
Favorite
LQW2UASR56J0CL image
Favorite

LQW2UASR56J0CL

Murata Electronics
RoHS
RoHS RoHS compliant
Package 1008 (2520 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description LQW2 1008 (2520Metric) 0.103Lx0.096W 2.62mmx2.45mm 560nH
PDF
/
Buying Options
Total Price: USD $0.27
Unit Price: USD $0.267733
≥1 USD $0.267733
≥10 USD $0.252577
≥100 USD $0.238285
≥500 USD $0.224795
≥1000 USD $0.212065
Inventory: 1199
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 8 Weeks

Physical

Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Surface Mount YES
Terminal Shape ONE SURFACE
Material - Core Non-Magnetic
Shape/Size Description RECTANGULAR PACKAGE

Technical

Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series LQW2
Size / Dimension 0.103Lx0.096W 2.62mmx2.45mm
Tolerance ±5%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Type Wirewound
Current Rating (Amps) 400mA
Shielding Unshielded
Number of Functions 1
Inductance 560nH
Test Frequency 25MHz
DC Resistance (DCR) 1.33Ohm Max
Frequency - Self Resonant 415MHz
Inductor Application RF INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 45 @ 100MHz
Quality Factor-Min (at L-nom) 45
Inductance Frequency - Test 25MHz
Rated Current-Max 0.4A
Special Feature Q MEASURED AT 100 MHZ

Dimensions

Height Seated (Max) 0.080 2.03mm

Compliance

RoHS Status ROHS3 Compliant
