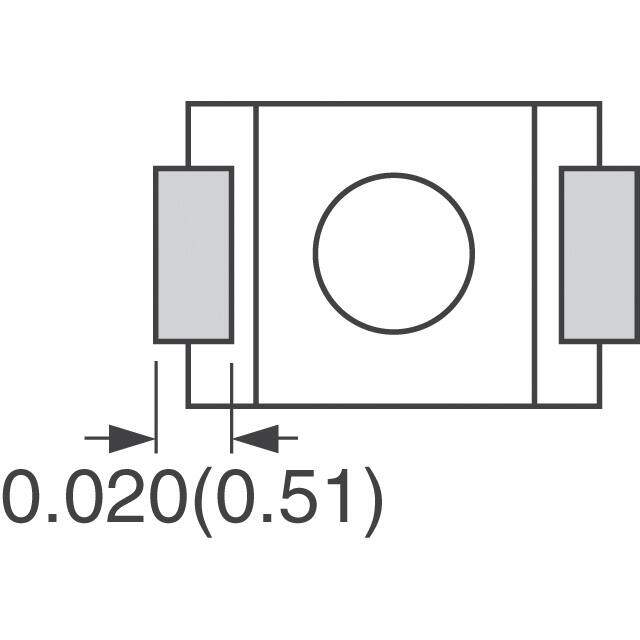

S1008-561H
RoHS
/
Package 1008 (2520 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
Fixed Inductors .56uH 3% .18ohm Shielded SMT Induc
PDF
/
Inventory: 8603
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.095 2.41mm
Height 2.41mm
Technical
Q Factor 40
Inductor Type GENERAL PURPOSE INDUCTOR
Quality Factor-Min (at L-nom) 40
Q @ Freq 40 @ 25MHz
Terminal Placement DUAL ENDED
Inductor Application RF INDUCTOR
Frequency - Self Resonant 232MHz
Max DC Current 790mA
DC Resistance (DCR) 180mOhm Max
Test Frequency 25MHz
Inductance 560nH
Case Code (Imperial) 1008
Case Code (Metric) 2520
Current Rating 790mA
Depth 2.66mm
Number of Functions 1
Shielding YES
Packing Method TR, 13 Inch
HTS Code 8504.50.80.00
Terminal Finish Tin/Lead (Sn63Pb37)
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
JESD-609 Code e0
Tolerance ±3%
Size / Dimension 0.115Lx0.105W 2.92mmx2.66mm
Series S1008
Published 2010
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape WRAPAROUND
Package / Case 1008 (2520 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 45 Weeks
