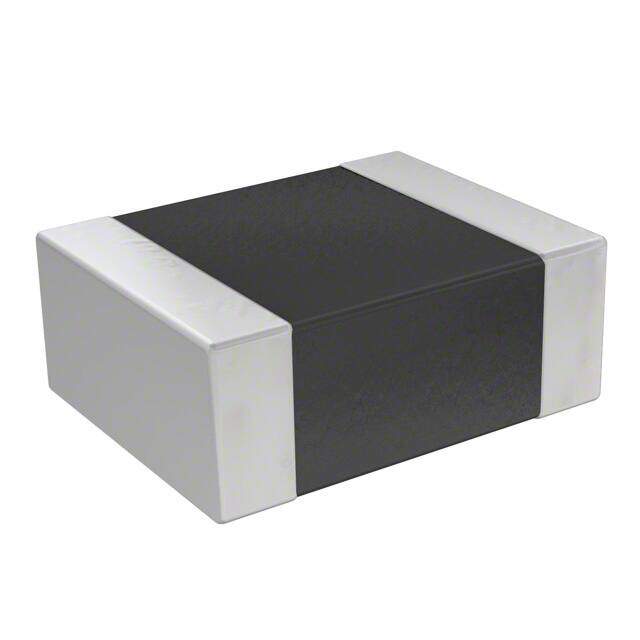

LQM2HPNR47MJHL
RoHS
RoHS compliant
RoHS compliantPackage 1008 (2520 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
LQM2 1008 (2520Metric) 0.098Lx0.079W 2.50mmx2.00mm 470nH
PDF
/
Inventory: 4293
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.047 1.20mm
Height 900μm
Technical
Current - Saturation 3.2A
Terminal Placement DUAL ENDED
Inductor Application RF INDUCTOR
Frequency - Self Resonant 70MHz
Max DC Current 2.7A
DC Resistance (DCR) 46mOhm Max
Test Frequency 1MHz
Inductance 470nH
Case Code (Imperial) 1008
Case Code (Metric) 2520
Current Rating 2.7A
Number of Functions 1
Shielding YES
HTS Code 8504.50.80.00
Type Multilayer
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.098Lx0.079W 2.50mmx2.00mm
Series LQM2
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape WRAPAROUND
Package / Case 1008 (2520 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status IN PRODUCTION (Last Updated: 2 weeks ago)
Factory Lead Time 7 Weeks
