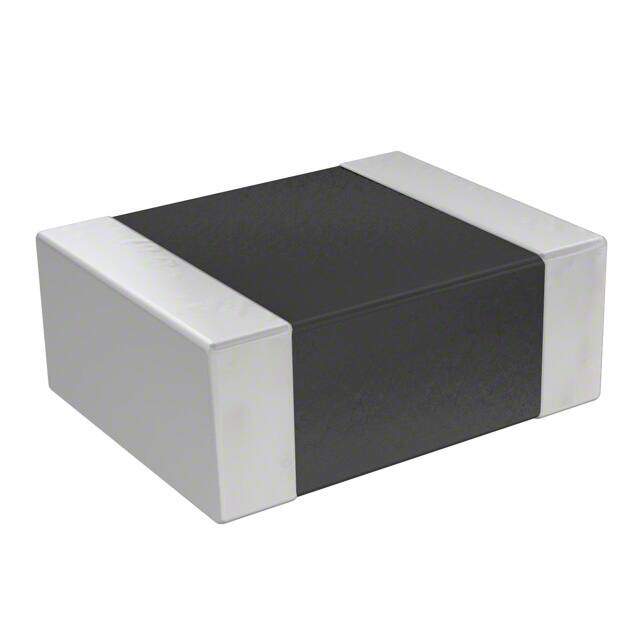

LQM2HPNR47MGHL
RoHS
RoHS compliant
RoHS compliantPackage 1008 (2520 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
LQM2 1008 (2520Metric) 0.098Lx0.079W 2.50mmx2.00mm 470nH
PDF
/
Buying Options
Total Price: USD $0.05
Unit Price: USD $0.05415
≥1 USD $0.05415
≥10 USD $0.04465
≥100 USD $0.04275
≥500 USD $0.0418
≥1000 USD $0.04085
Inventory: 30591
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Lifecycle Status IN PRODUCTION (Last Updated: 3 weeks ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Terminal Shape WRAPAROUND
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series LQM2
Size / Dimension 0.098Lx0.079W 2.50mmx2.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Multilayer
HTS Code 8504.50.80.00
Shielding YES
Number of Functions 1
Current Rating 2.6A
Case Code (Metric) 2520
Case Code (Imperial) 1008
Inductance 470nH
Test Frequency 1MHz
DC Resistance (DCR) 50mOhm Max
Max DC Current 2.6A
Frequency - Self Resonant 80MHz
Inductor Application RF INDUCTOR
Terminal Placement DUAL ENDED
Current - Saturation 4.5A
Dimensions
Height 900μm
Height Seated (Max) 0.039 1.00mm
Compliance
RoHS Status ROHS3 Compliant
