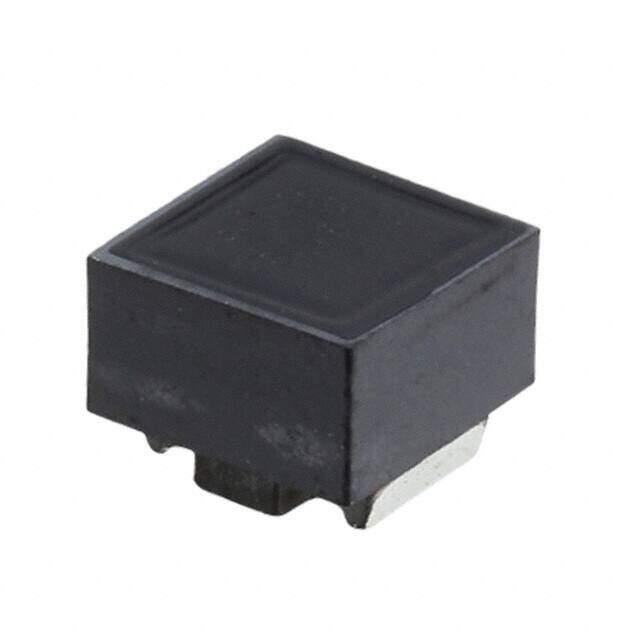

LQH66SN150M03L image
Favorite
LQH66SN150M03L image
Favorite

LQH66SN150M03L

Murata Electronics
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description LQH66 Nonstandard 0.248Lx0.248W 6.30mmx6.30mm 15muH
PDF
/
Buying Options
Total Price: USD $0.72
Unit Price: USD $0.723806
≥1 USD $0.723806
≥10 USD $0.682833
≥100 USD $0.644181
≥500 USD $0.607717
≥1000 USD $0.573324
Inventory: 3344
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Height Seated (Max) 0.197 5.00mm
Height 4.7mm

Technical

Special Feature DCR MEASURED AT 40% TOLERANCE
DC Current 1.3A
Terminal Placement DUAL ENDED
Inductor Application RF INDUCTOR
Frequency - Self Resonant 17MHz
Max DC Current 1.3A
DC Resistance (DCR) 96.6mOhm Max
Test Frequency 1MHz
Inductance 15μH
Case Code (Imperial) 2525
Case Code (Metric) 6363
Military Standard Not
Current Rating 1.3A
Depth 6.6mm
Number of Functions 1
Shielding YES
Packing Method TR, Embossed, 7 Inch
HTS Code 8504.50.80.00
Terminal Finish Tin/Copper (Sn/Cu)
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e2
Tolerance ±20%
Size / Dimension 0.248Lx0.248W 6.30mmx6.30mm
Series LQH66
Packaging Tape & Reel (TR)
Operating Temperature -40°C~80°C

Physical

Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Weight 710.013807mg
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Lifecycle Status IN PRODUCTION (Last Updated: 4 weeks ago)
Factory Lead Time 8 Weeks
