LQH66SN101M03L
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
LQH66 Nonstandard 0.248Lx0.248W 6.30mmx6.30mm 100muH
PDF
/
Buying Options
Total Price: USD $0.45
Unit Price: USD $0.445283
≥1 USD $0.445283
≥10 USD $0.420075
≥100 USD $0.396302
≥500 USD $0.373865
≥1000 USD $0.352706
Inventory: 1298
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.197 5.00mm
Height 4.7mm
Technical
Special Feature DCR MEASURED AT 40% TOLERANCE
DC Current 520mA
Terminal Placement DUAL ENDED
Inductor Application RF INDUCTOR
Frequency - Self Resonant 6.5MHz
Max DC Current 520mA
DC Resistance (DCR) 504mOhm Max
Test Frequency 100kHz
Inductance 100μH
Case Code (Imperial) 2525
Case Code (Metric) 6363
Military Standard Not
Current Rating 520mA
Depth 6.6mm
Number of Functions 1
Shielding YES
Packing Method TR, Embossed, 7 Inch
HTS Code 8504.50.80.00
Terminal Finish Tin/Copper (Sn/Cu)
Resistance 360mOhm
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e2
Tolerance ±20%
Size / Dimension 0.248Lx0.248W 6.30mmx6.30mm
Series LQH66
Packaging Tape & Reel (TR)
Operating Temperature -40°C~80°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Weight 710.013807mg
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 8 Weeks

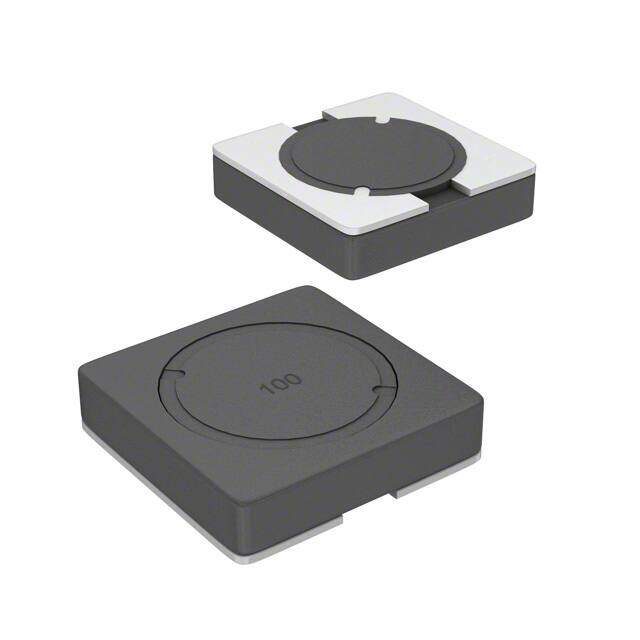

Alternative Model
