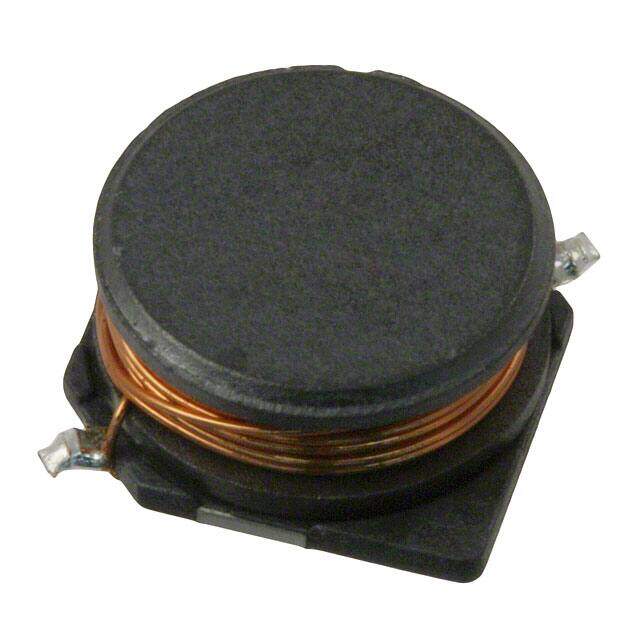

SDR1045-101K image
Favorite
SDR1045-101K image
Favorite

SDR1045-101K

Bourns Inc.
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description SDR1045 Nonstandard 0.394Lx0.394W 10.00mmx10.00mm 100muH
PDF
/
Buying Options
Total Price: USD $0.77
Unit Price: USD $0.7744
≥1 USD $0.7744
≥10 USD $0.65296
≥100 USD $0.593472
≥500 USD $0.55792
≥1000 USD $0.462968
≥3000 USD $0.427328
Inventory: 1089
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 18 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2010
Series SDR1045
Size / Dimension 0.394Lx0.394W 10.00mmx10.00mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 1.1A
Shielding Unshielded
Depth 10.3mm
Current Rating 1.1A
Base Part Number SDR1045
Military Standard Not
Inductance 100μH
Test Frequency 100kHz
DC Resistance (DCR) 540mOhm Max
Max DC Current 1.1A
Frequency - Self Resonant 9.7MHz
Q @ Freq 14 @ 796kHz
Inductance Frequency - Test 100kHz
Current - Saturation 1.3A
Q Factor 14
DC Current 1.1A

Dimensions

Height 4.4958mm
Height Seated (Max) 0.189 4.80mm
Length 10.0076mm
Width 10.0076mm

Compliance

RoHS Status ROHS3 Compliant
