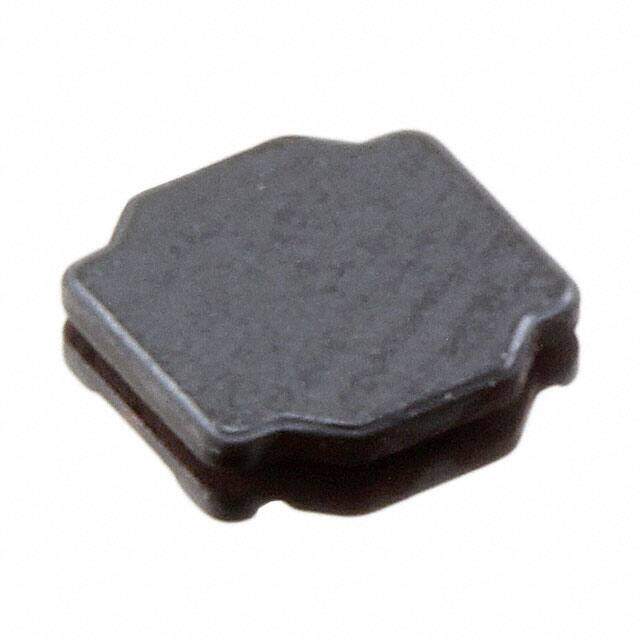

LQH44PN220MGRL
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
LQH44 Nonstandard 0.157Lx0.157W 4.00mmx4.00mm 22muH
PDF
/
Inventory: 2232
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.039 1.00mm
Height 900μm
Technical
Current - Saturation 500mA
Terminal Placement DUAL ENDED
Inductor Application RF INDUCTOR
Frequency - Self Resonant 8MHz
Max DC Current 500mA
DC Resistance (DCR) 684mOhm Max
Test Frequency 1MHz
Inductance 22μH
Case Code (Imperial) 1515
Case Code (Metric) 4040
Current Rating 450mA
Number of Functions 1
Shielding YES
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.157Lx0.157W 4.00mmx4.00mm
Series LQH44
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Weight 99.988768mg
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status NRND (Last Updated: 1 month ago)
Factory Lead Time 8 Weeks
