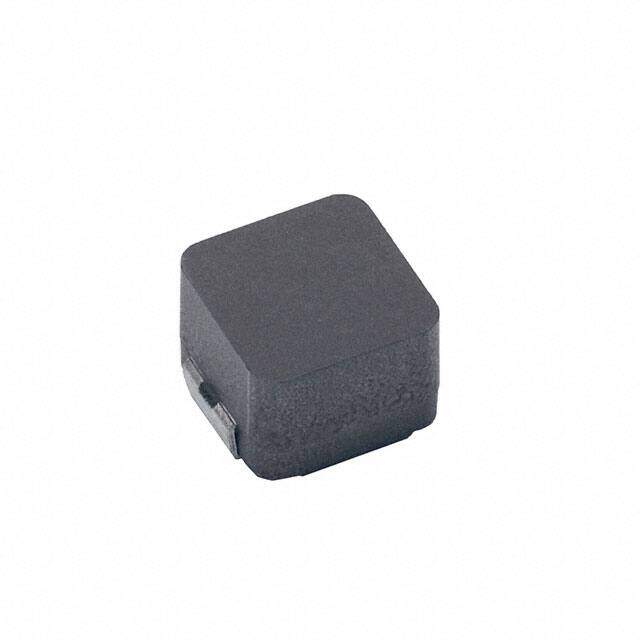

MPXV1D0530L220
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
MPXV Nonstandard 0.209Lx0.197W 5.30mmx5.00mm 22muH
PDF
/
Buying Options
Total Price: USD $0.73
Unit Price: USD $0.7304
≥1 USD $0.7304
≥10 USD $0.6204
≥100 USD $0.563904
≥500 USD $0.530112
≥1000 USD $0.439912
≥3000 USD $0.406102
Inventory: 1159
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.118 3.00mm
Technical
Current - Saturation 2.5A
Inductor Type GENERAL PURPOSE INDUCTOR
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 12MHz
DC Resistance (DCR) 341.2mOhm Max
Inductance 22μH
Shielding Shielded
Current Rating (Amps) 2A
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.209Lx0.197W 5.30mmx5.00mm
Series MPXV
Packaging Tape & Reel (TR)
Operating Temperature -55°C~155°C
Physical
Material - Core Metal Composite
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 27 Weeks
