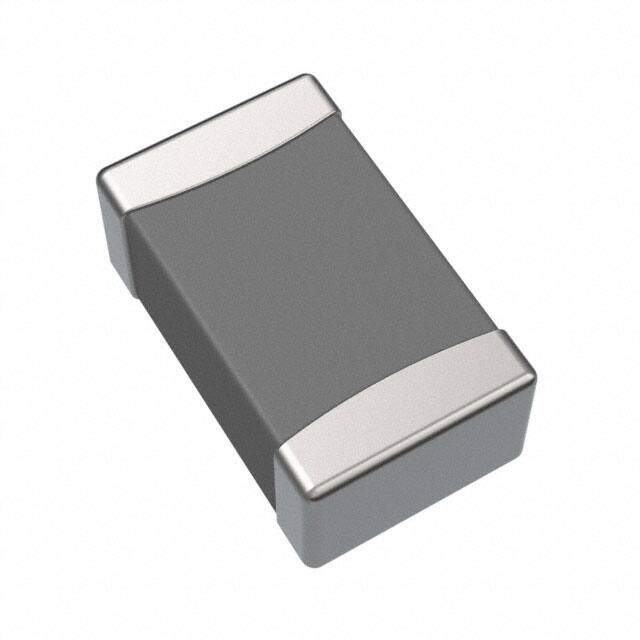

LPWI201210S1R0T
RoHS
RoHS compliant
RoHS compliantPackage 0805 (2012 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
LPWI 0805 (2012Metric) 0.079Lx0.047W 2.00mmx1.20mm 1muH
PDF
/
Inventory: 2013
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Material - Core Metal Composite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series LPWI
Size / Dimension 0.079Lx0.047W 2.00mmx1.20mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Thin Film
Current Rating (Amps) 2.7A
Shielding Shielded
Inductance 1μH
DC Resistance (DCR) 60mOhm Max
Inductance Frequency - Test 1MHz
Current - Saturation 3.2A
Dimensions
Height Seated (Max) 0.039 1.00mm
Compliance
RoHS Status ROHS3 Compliant
