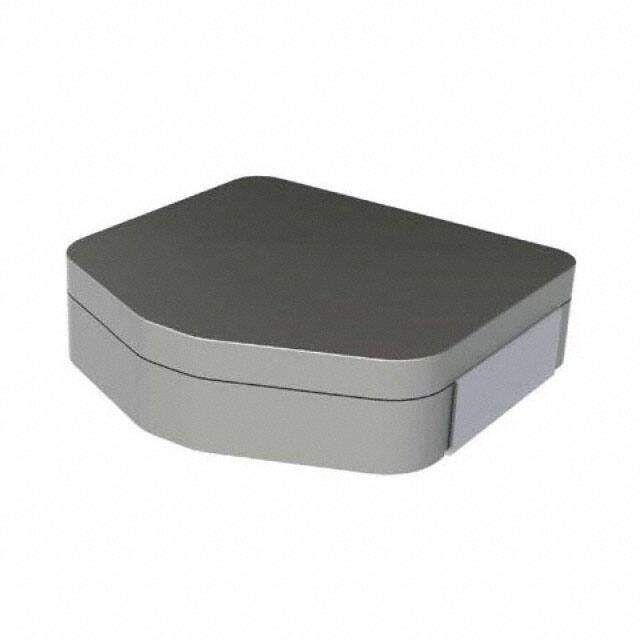

MPX1D1040L2R2
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
METCOM MPX Nonstandard 0.425Lx0.394W 10.80mmx10.00mm 2.2muH
PDF
/
Buying Options
Total Price: USD $1.9
Unit Price: USD $1.90371
≥1 USD $1.90371
≥10 USD $1.795951
≥100 USD $1.694299
≥500 USD $1.598391
≥1000 USD $1.507913
Inventory: 4034
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.157 4.00mm
Technical
Current - Saturation 18.5A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 23MHz
DC Resistance (DCR) 7.9mOhm Max
Inductance 2.2μH
Shielding Shielded
Current Rating (Amps) 14.6A
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.425Lx0.394W 10.80mmx10.00mm
Series METCOM MPX
Packaging Tape & Reel (TR)
Operating Temperature -55°C~155°C
Physical
Material - Core Metal Composite
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 27 Weeks
