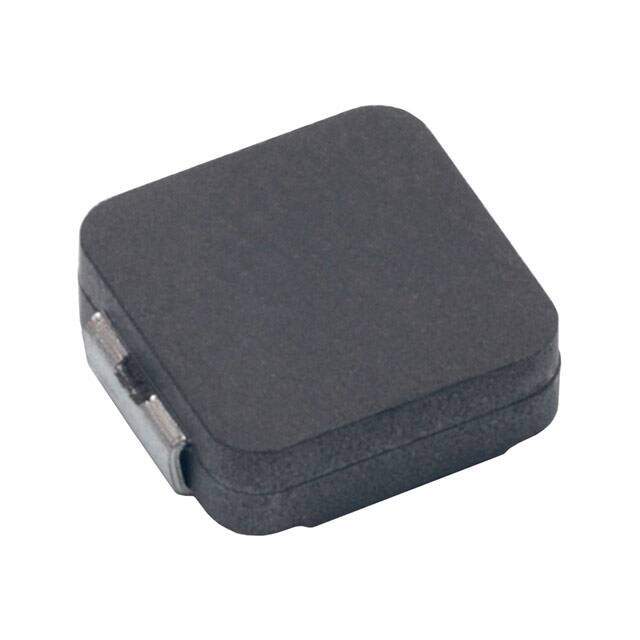

MPX1D0624L2R2
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
METCOM MPX Nonstandard 0.276Lx0.256W 7.00mmx6.50mm 2.2muH
PDF
/
Buying Options
Total Price: USD $1.1
Unit Price: USD $1.102768
≥1 USD $1.102768
≥10 USD $1.040345
≥100 USD $0.981462
≥500 USD $0.925906
≥1000 USD $0.873496
Inventory: 1271
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 27 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Metal Composite
Technical
Operating Temperature -55°C~155°C
Packaging Tape & Reel (TR)
Series METCOM MPX
Size / Dimension 0.276Lx0.256W 7.00mmx6.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 6.3A
Shielding Shielded
Inductance 2.2μH
DC Resistance (DCR) 30.7mOhm Max
Inductance Frequency - Test 100kHz
Current - Saturation 9A
Dimensions
Height Seated (Max) 0.094 2.40mm
Compliance
RoHS Status ROHS3 Compliant
