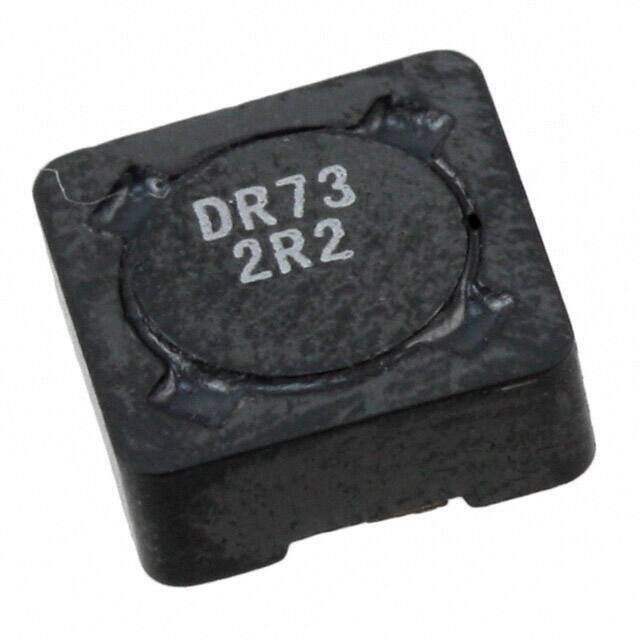

DR73-2R2-R image
Favorite
DR73-2R2-R image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description DR Nonstandard 0.299Lx0.299W 7.60mmx7.60mm 2.2muH
PDF
/
Buying Options
Total Price: USD $0.6
Unit Price: USD $0.5984
≥1 USD $0.5984
≥10 USD $0.5148
≥100 USD $0.472032
≥500 USD $0.429088
≥1000 USD $0.381832
≥3000 USD $0.360413
Inventory: 1275
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Radiation Hardening No

Dimensions

Width 6mm
Length 7.6mm
Height Seated (Max) 0.140 3.55mm
Height 3.55mm

Technical

Self Resonant Frequency 100kHz
RMS Current (Irms) 4.15A
Inductance Tolerance 20%
Current - Saturation 5.52A
Inductance Frequency - Test 100kHz
Max DC Current 5.52A
DC Resistance (DCR) 16.5mOhm
Test Frequency 100kHz
Inductance 2.2μH
Military Standard Not
Current Rating 4.15A
Depth 7.6mm
Shielding Shielded
Current Rating (Amps) 4.15A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 16.5mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.299Lx0.299W 7.60mmx7.60mm
Series DR
Published 2011
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Weight 907.18474mg
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 9 Weeks
