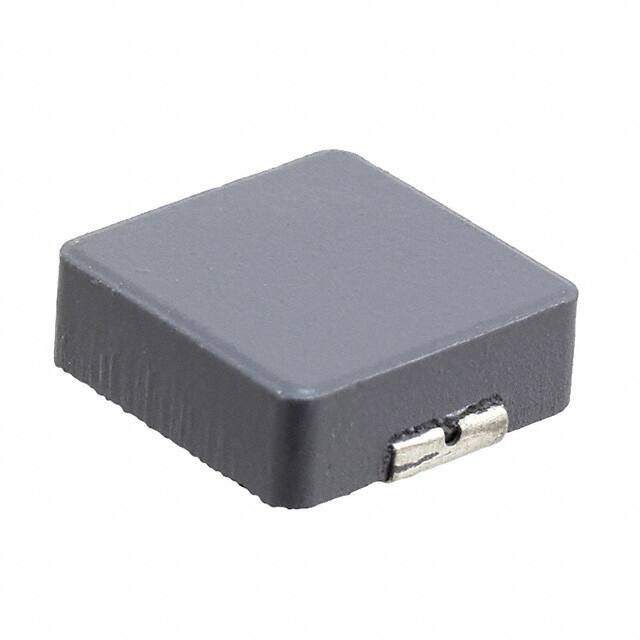

SRP1245A-2R2M
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SRP1245A Nonstandard 0.531Lx0.492W 13.50mmx12.50mm 2.2muH
PDF
/
Buying Options
Total Price: USD $1.46
Unit Price: USD $1.4608
≥1 USD $1.4608
≥10 USD $1.23904
≥100 USD $1.141536
≥500 USD $1.020096
≥1000 USD $0.849992
≥3000 USD $0.825757
Inventory: 1197
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height Seated (Max) 0.197 5.00mm
Height 4.8mm
Technical
RMS Current (Irms) 20A
Inductance Tolerance 20%
Case/Size Code 5350
Q Factor 20
Current - Saturation 32A
Quality Factor-Min (at L-nom) 20
Q @ Freq 20 @ 100kHz
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 24MHz
Max DC Current 20A
DC Resistance (DCR) 5.5mOhm Max
Test Frequency 100kHz
Inductance 2.2μH
Current Rating 20A
Construction Rectangular
Depth 12.5mm
Number of Functions 1
Shielding YES
Packing Method TR, Embossed , 13 Inch
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.531Lx0.492W 13.50mmx12.50mm
Series SRP1245A
Published 2006
Packaging Tape & Reel (TR)
Operating Temperature -40°C~150°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Carbonyl Powder
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
