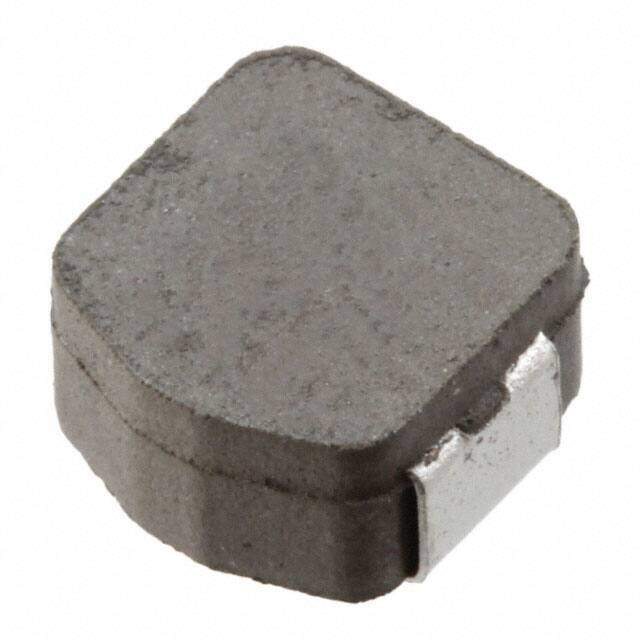

MPLCG0530L2R2
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
MPLCG Nonstandard 0.217Lx0.197W 5.50mmx5.00mm 2.2muH
PDF
/
Buying Options
Total Price: USD $1.69
Unit Price: USD $1.6896
≥1 USD $1.6896
≥10 USD $1.43264
≥100 USD $1.320704
≥500 USD $1.180256
≥1000 USD $0.983488
≥3000 USD $0.955363
Inventory: 1186
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.118 3.00mm
Technical
Inductance Tolerance 20%
Rated Current-Max 4.5A
Current - Saturation 5A
Inductance Frequency - Test 100kHz
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
DC Resistance (DCR) 36.4mOhm Max
Test Frequency 0.1MHz
Inductance 2.2μH
Number of Functions 1
Shielding Shielded
Current Rating (Amps) 4.5A
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.217Lx0.197W 5.50mmx5.00mm
Series MPLCG
Published 2013
Packaging Tape & Reel (TR)
Operating Temperature -20°C~120°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Metal Composite
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 20 Weeks
