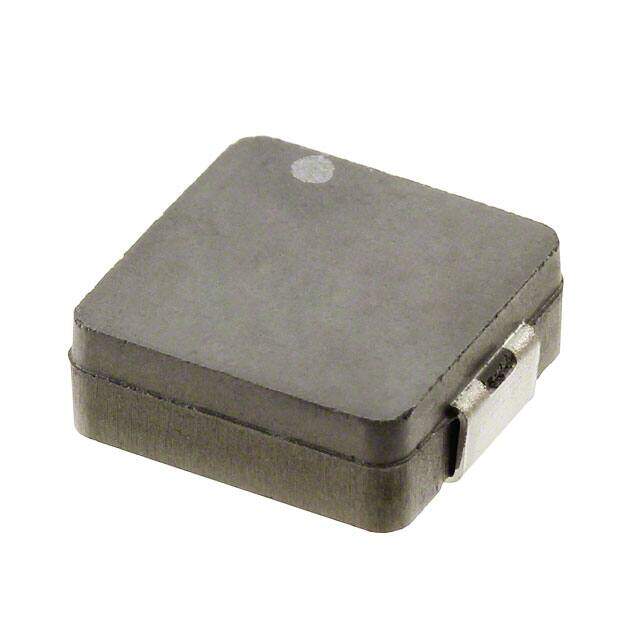

MPLC1040L4R7
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, J-Lead
Category Inductors, Coils, Chokes / Fixed Inductors
Description
MPLC 2-SMD J-Lead 0.453Lx0.394W 11.50mmx10.00mm 4.7muH
PDF
/
Buying Options
Total Price: USD $0.5
Unit Price: USD $0.4978
≥1 USD $0.4978
≥10 USD $0.4085
≥100 USD $0.39615
≥500 USD $0.38285
≥1000 USD $0.3705
Inventory: 1249
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.157 4.00mm
Technical
Inductance Tolerance 20%
Rated Current-Max 8A
Inductance Frequency - Test 100kHz
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
DC Resistance (DCR) 19mOhm Max
Test Frequency 0.1MHz
Inductance 4.7μH
Number of Functions 1
Shielding Shielded
Current Rating (Amps) 8A
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.453Lx0.394W 11.50mmx10.00mm
Series MPLC
Published 2006
Packaging Tape & Reel (TR)
Operating Temperature -20°C~120°C
Physical
Core Material COMPOSITE
Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case 2-SMD, J-Lead
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 29 Weeks
