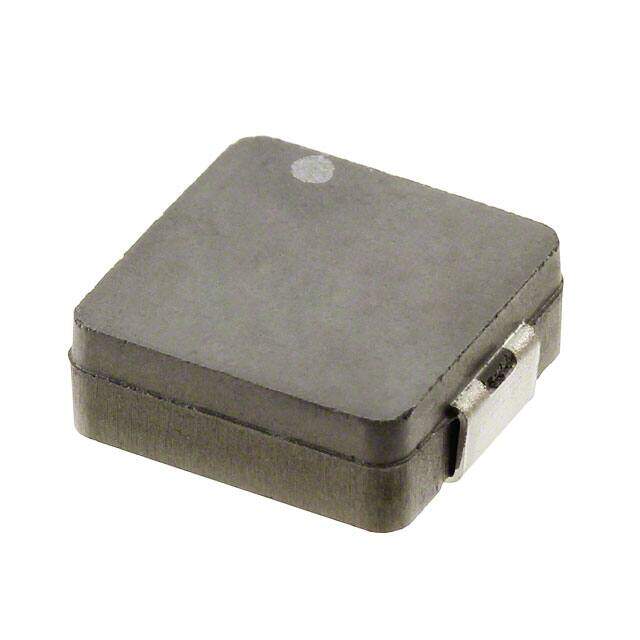

MPLC1040L3R3
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, J-Lead
Category Inductors, Coils, Chokes / Fixed Inductors
Description
MPLC 2-SMD J-Lead 0.453Lx0.394W 11.50mmx10.00mm 3.3muH
PDF
/
Inventory: 972
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 29 Weeks
Physical
Mounting Type Surface Mount
Package / Case 2-SMD, J-Lead
Surface Mount YES
Terminal Shape WRAPAROUND
Shape/Size Description RECTANGULAR PACKAGE
Core Material COMPOSITE
Technical
Operating Temperature -20°C~120°C
Packaging Tape & Reel (TR)
Published 2011
Series MPLC
Size / Dimension 0.453Lx0.394W 11.50mmx10.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Current Rating (Amps) 8.8A
Shielding YES
Number of Functions 1
Inductance 3.3μH
Test Frequency 0.1MHz
DC Resistance (DCR) 14mOhm Max
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductance Frequency - Test 100kHz
Current - Saturation 9.3A
Rated Current-Max 8.8A
Inductance Tolerance 20%
Dimensions
Height Seated (Max) 0.157 4.00mm
Compliance
RoHS Status ROHS3 Compliant
