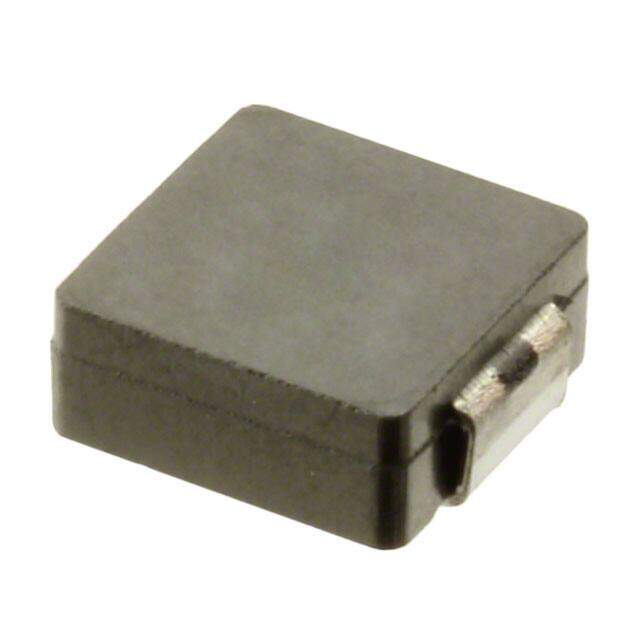

MPLC0730L3R3 image
Favorite
MPLC0730L3R3 image
Favorite

MPLC0730L3R3

KEMET
RoHS
RoHS RoHS compliant
Package 2-SMD, J-Lead
Category Inductors, Coils, Chokes / Fixed Inductors
Description MPLC 2-SMD J-Lead 0.303Lx0.264W 7.70mmx6.70mm 3.3muH
PDF
/
Buying Options
Total Price: USD $1.21
Unit Price: USD $1.2056
≥1 USD $1.2056
≥10 USD $1.0252
≥100 USD $0.944768
≥500 USD $0.844272
≥1000 USD $0.707872
Inventory: 1083
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 29 Weeks

Physical

Mounting Type Surface Mount
Package / Case 2-SMD, J-Lead
Surface Mount YES
Terminal Shape WRAPAROUND
Shape/Size Description RECTANGULAR PACKAGE
Core Material COMPOSITE

Technical

Operating Temperature -20°C~120°C
Packaging Tape & Reel (TR)
Published 2013
Series MPLC
Size / Dimension 0.303Lx0.264W 7.70mmx6.70mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Current Rating (Amps) 5.7A
Shielding Shielded
Number of Functions 1
Inductance 3.3μH
Test Frequency 0.1MHz
DC Resistance (DCR) 30mOhm Max
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductance Frequency - Test 100kHz
Current - Saturation 6.5A
Rated Current-Max 5.7A
Inductance Tolerance 20%

Dimensions

Height Seated (Max) 0.118 3.00mm

Compliance

RoHS Status ROHS3 Compliant
