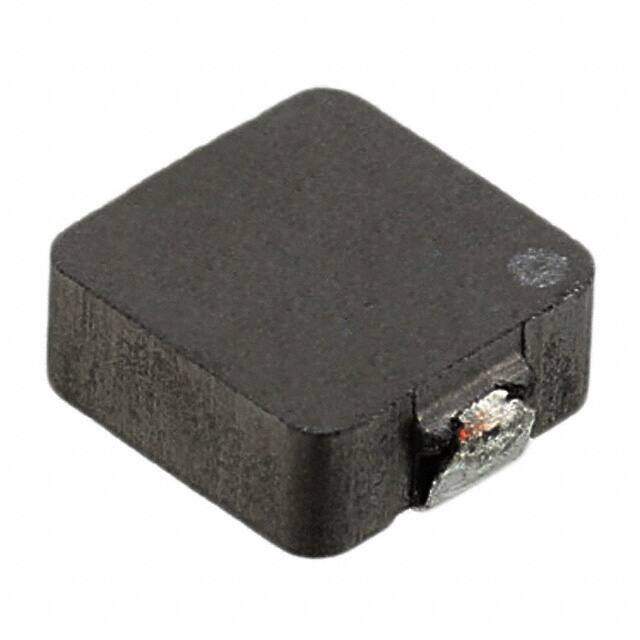

MPCH0730LR24
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
MPCH Nonstandard 0.315Lx0.264W 8.00mmx6.70mm 240nH
PDF
/
Buying Options
Total Price: USD $1.49
Unit Price: USD $1.4872
≥1 USD $1.4872
≥10 USD $1.26192
≥100 USD $1.162656
≥500 USD $1.039104
≥1000 USD $0.86592
≥3000 USD $0.841139
Inventory: 670
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Surface Mount YES
Terminal Shape WRAPAROUND
Material - Core Metal Composite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -20°C~120°C
Packaging Tape & Reel (TR)
Published 2011
Series MPCH
Size / Dimension 0.315Lx0.264W 8.00mmx6.70mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
HTS Code 8504.50.80.00
Current Rating (Amps) 23A
Shielding Shielded
Number of Functions 1
Inductance 240nH
Test Frequency 0.1MHz
DC Resistance (DCR) 1.2mOhm
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductance Frequency - Test 100kHz
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 19A
Rated Current-Max 23A
Inductance Tolerance 20%
Dimensions
Height Seated (Max) 0.118 3.00mm
Compliance
RoHS Status ROHS3 Compliant
