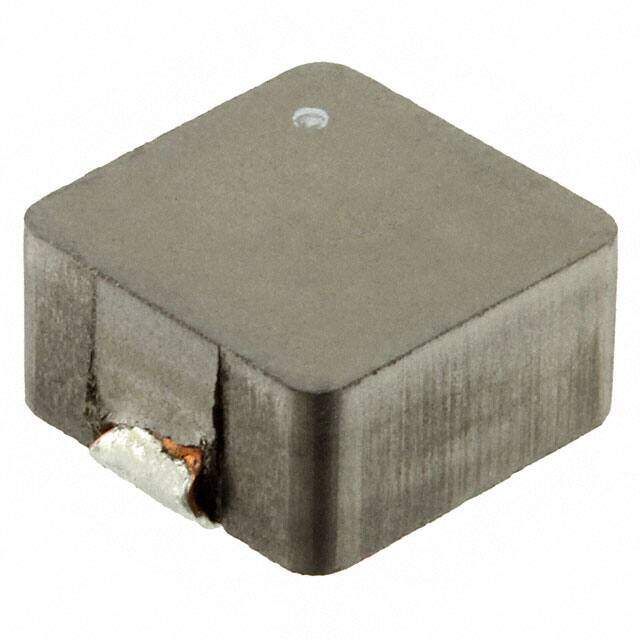

MPC1055L1R0C
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, J-Lead
Category Inductors, Coils, Chokes / Fixed Inductors
Description
MPC 2-SMD J-Lead 0.461Lx0.394W 11.70mmx10.00mm 1muH
PDF
/
Buying Options
Total Price: USD $1.79
Unit Price: USD $1.788726
≥1 USD $1.788726
≥10 USD $1.687474
≥100 USD $1.591954
≥500 USD $1.501846
≥1000 USD $1.416834
Inventory: 1165
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 29 Weeks
Physical
Mounting Type Surface Mount
Package / Case 2-SMD, J-Lead
Surface Mount YES
Terminal Shape WRAPAROUND
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -20°C~120°C
Packaging Tape & Reel (TR)
Published 2013
Series MPC
Size / Dimension 0.461Lx0.394W 11.70mmx10.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
HTS Code 8504.50.80.00
Current Rating (Amps) 18.5A
Shielding Shielded
Number of Functions 1
Inductance 1μH
Test Frequency 0.1MHz
DC Resistance (DCR) 2.3mOhm Max
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductance Frequency - Test 100kHz
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 21A
Rated Current-Max 18.5A
Inductance Tolerance 20%
Dimensions
Height Seated (Max) 0.217 5.50mm
Compliance
RoHS Status ROHS3 Compliant
