2512-102K
RoHS
/
Package 2-SMD, J-Lead
Category Inductors, Coils, Chokes / Fixed Inductors
Description
2512 2-SMD J-Lead 0.245Lx0.095W 6.22mmx2.41mm 1muH
PDF
/
Buying Options
Total Price: USD $2.38
Unit Price: USD $2.3848
≥1 USD $2.3848
≥10 USD $2.0284
≥100 USD $1.869472
≥500 USD $1.670416
≥1000 USD $1.392072
≥3000 USD $1.352314
Inventory: 524
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.110 2.79mm
Height 2.79mm
Technical
Case/Size Code 2611
Current - Saturation 1.23A
Inductor Type GENERAL PURPOSE INDUCTOR
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 1.64A
DC Resistance (DCR) 150mOhm Max
Test Frequency 7.9MHz
Inductance 1μH
Current Rating 1.64A
Construction Rectangular
Depth 2.67mm
Number of Functions 1
Shielding NO
Packing Method TR, 13 Inch
HTS Code 8504.50.80.00
Terminal Finish Tin/Lead (Sn63Pb37)
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
JESD-609 Code e0
Tolerance ±10%
Size / Dimension 0.245Lx0.095W 6.22mmx2.41mm
Series 2512
Published 2010
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape WRAPAROUND
Package / Case 2-SMD, J-Lead
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks

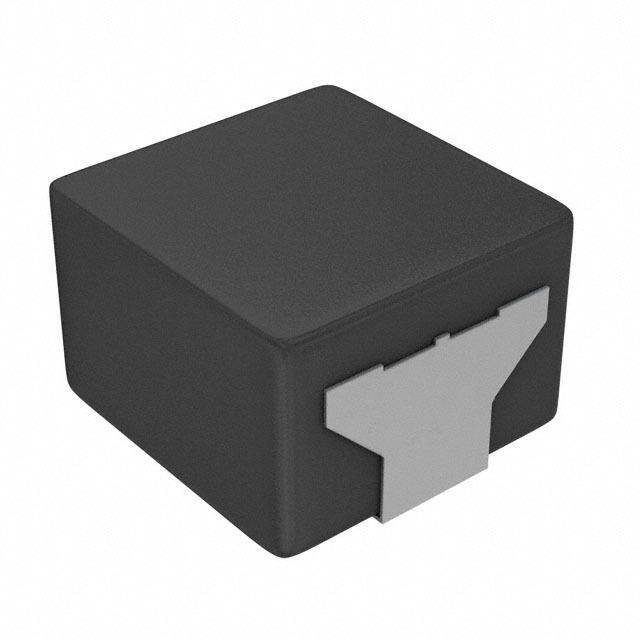

Alternative Model
