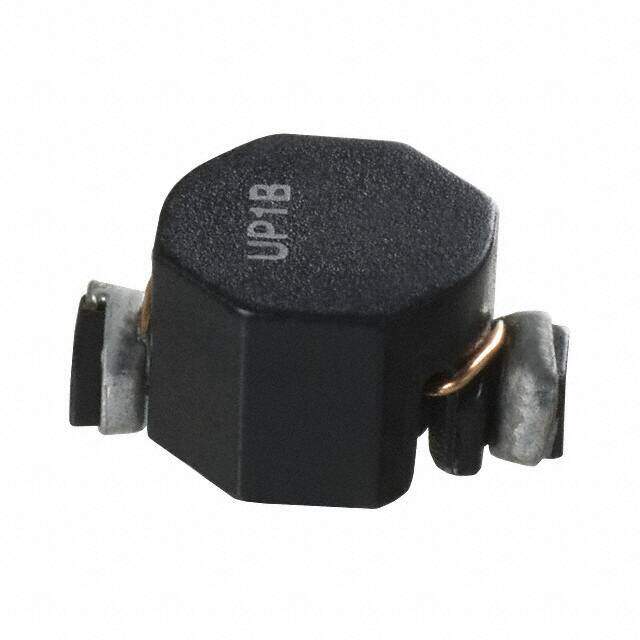

UP1B-101-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
UNI-PAC? Nonstandard 0.350Lx0.240W 8.89mmx6.10mm 100muH
PDF
/
Buying Options
Total Price: USD $1.02
Unit Price: USD $1.0208
≥1 USD $1.0208
≥10 USD $0.86856
≥100 USD $0.800096
≥500 USD $0.715088
≥1000 USD $0.599456
Inventory: 1120
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Width 6.096mm
Length 8.89mm
Height Seated (Max) 0.197 5.00mm
Height 5mm
Technical
RMS Current (Irms) 470mA
DC Current 470mA
Inductance Tolerance 20%
Current - Saturation 530mA
Inductance Frequency - Test 100kHz
Max DC Current 470mA
DC Resistance (DCR) 1.11Ohm Max
Test Frequency 100kHz
Inductance 100μH
Military Standard Not
Current Rating 470mA
Depth 6.1mm
Shielding Unshielded
Current Rating (Amps) 470mA
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.350Lx0.240W 8.89mmx6.10mm
Series UNI-PAC?
Published 2007
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Material - Core Ferrite
Weight 907.18474mg
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
