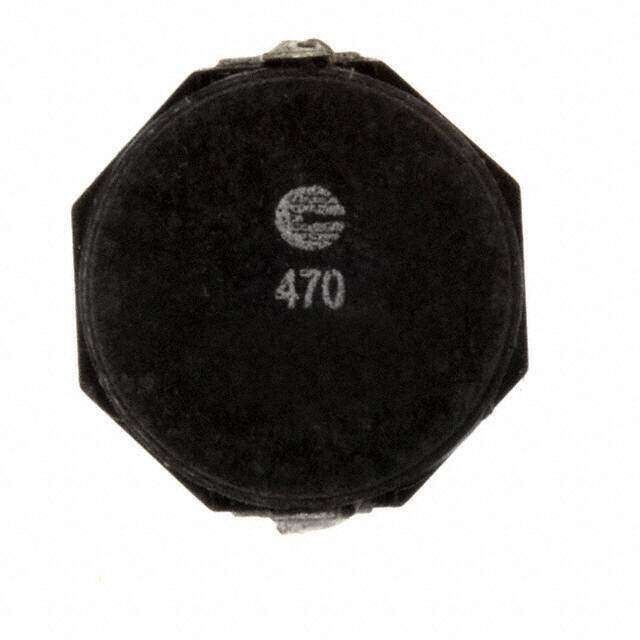

SD8328-470-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 47UH 1.3A 194 MOHM SMD
PDF
/
Buying Options
Total Price: USD $2.68
Unit Price: USD $2.684
≥1 USD $2.684
≥10 USD $2.27832
≥100 USD $2.100032
≥500 USD $1.876688
≥1000 USD $1.563848
≥3000 USD $1.519162
Inventory: 1248
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2007
Series SD8328
Size / Dimension 0.374Lx0.327W 9.50mmx8.30mm
Tolerance ±30%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 1.3A
Shielding Shielded
Inductance 47μH
DC Resistance (DCR) 194mOhm Max
Inductance Frequency - Test 100kHz
Current - Saturation 1.2A
Dimensions
Height Seated (Max) 0.118 3.00mm
Compliance
RoHS Status RoHS Compliant
