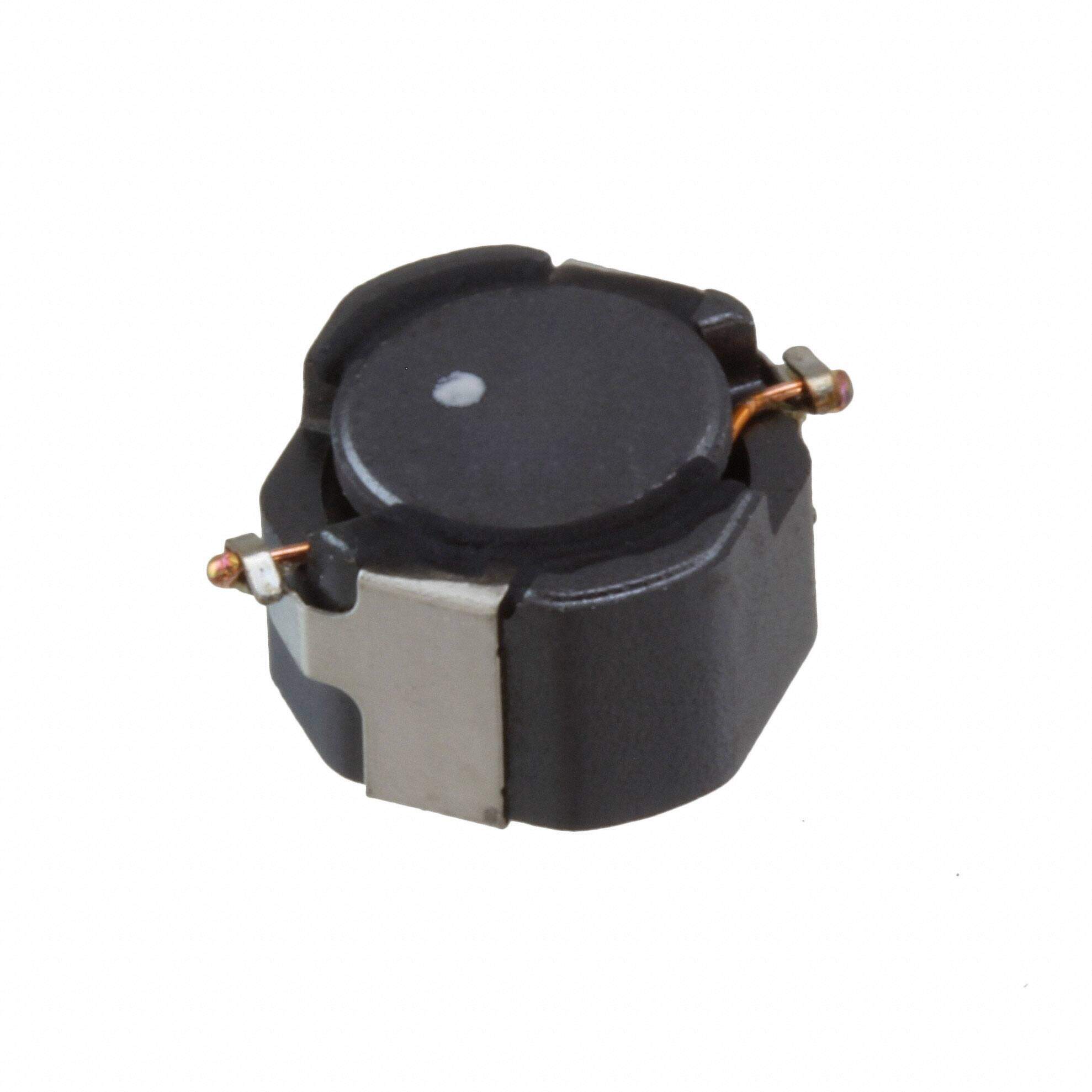

CLF7045T-470M-CA
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CLF-CA Nonstandard 0.283Lx0.272W 7.20mmx6.90mm 47muH
PDF
/
Inventory: 2386
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status RoHS Compliant
Dimensions
Width 6.9mm
Length 7.1882mm
Height Seated (Max) 0.189 4.80mm
Height 4.5mm
Technical
Current - Saturation 1.3A
Inductance Frequency - Test 100kHz
Max DC Current 1.3A
DC Resistance (DCR) 180mOhm Max
Test Frequency 100kHz
Inductance 47μH
Current Rating 1.2A
Shielding Shielded
Current Rating (Amps) 1.2A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Tolerance ±20%
Size / Dimension 0.283Lx0.272W 7.20mmx6.90mm
Series CLF-CA
Published 2016
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C
Physical
Material - Core Ferrite
Weight 799.995193mg
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status OBSOLETE (Last Updated: 2 months ago)
Factory Lead Time 25 Weeks
