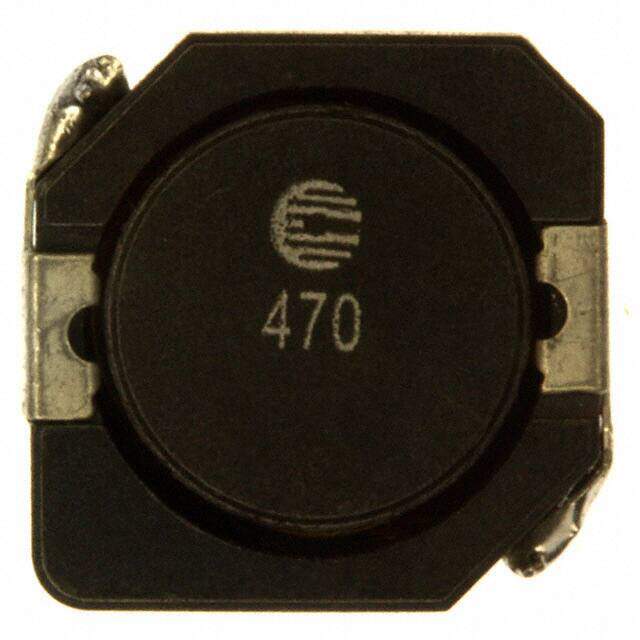

SD52-470-R image
Favorite
SD52-470-R image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description SD52 Nonstandard 0.205Lx0.205W 5.20mmx5.20mm 47muH
PDF
/
Inventory: 7825
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Width 5.1816mm
Length 5.1816mm
Height Seated (Max) 0.079 2.00mm
Height 2mm

Technical

Current - Saturation 500mA
Inductance Frequency - Test 100kHz
Max DC Current 500mA
DC Resistance (DCR) 446.5mOhm
Test Frequency 100kHz
Inductance 47μH
Current Rating 580mA
Shielding Shielded
Current Rating (Amps) 580mA
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.205Lx0.205W 5.20mmx5.20mm
Series SD52
Published 2006
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Weight 453.59237mg
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 15 Weeks
