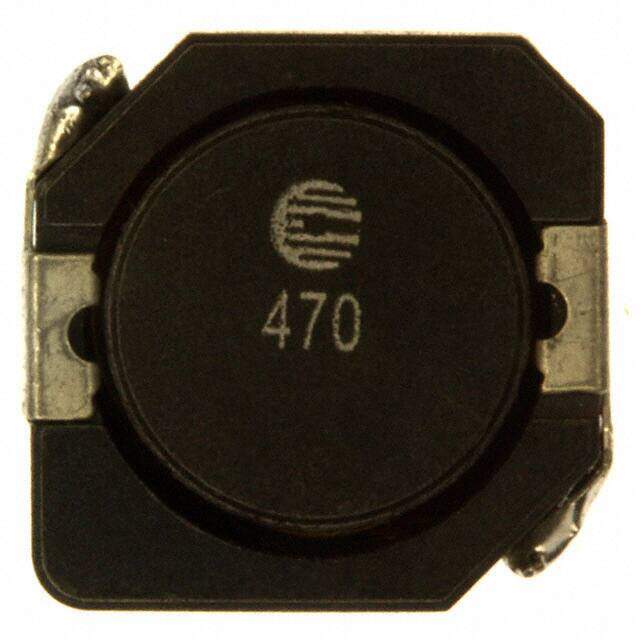

DR1040-470-R image
Favorite
DR1040-470-R image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description DR1040 Nonstandard 0.413Lx0.406W 10.50mmx10.30mm 47muH
PDF
/
Buying Options
Total Price: USD $0.79
Unit Price: USD $0.792
≥1 USD $0.792
≥10 USD $0.66968
≥100 USD $0.608608
≥500 USD $0.572176
≥1000 USD $0.47476
≥3000 USD $0.43824
Inventory: 1165
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Weight 2.267962g
Material - Core Ferrite

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2005
Series DR1040
Size / Dimension 0.413Lx0.406W 10.50mmx10.30mm
Tolerance ±30%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 1.9A
Shielding Shielded
Depth 10.3mm
Current Rating 1.9A
Military Standard Not
Lead Pitch 7.7mm
Inductance 47μH
Test Frequency 100kHz
DC Resistance (DCR) 128mOhm Max
Max DC Current 1.9A
Inductance Frequency - Test 100kHz
Current - Saturation 2.1A
Inductance Tolerance 30%
DC Current 1.9A
RMS Current (Irms) 1.9A
Self Resonant Frequency 1MHz

Dimensions

Height 4mm
Height Seated (Max) 0.157 4.00mm
Length 10.5mm
Width 10.3mm

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
