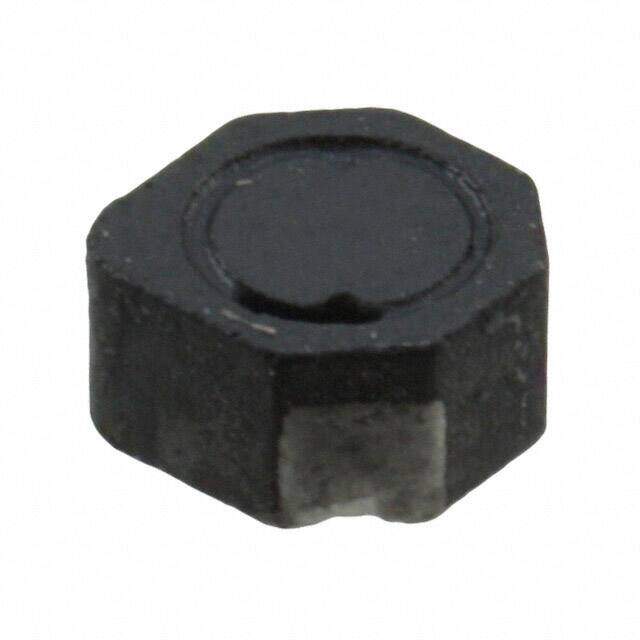

SD3118-331-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SD3118 Nonstandard 0.122Lx0.122W 3.10mmx3.10mm 330muH
PDF
/
Inventory: 5568
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 3.0988mm
Length 3.0988mm
Height Seated (Max) 0.071 1.80mm
Height 1.8mm
Technical
DC Current 146mA
Current - Saturation 145mA
Inductance Frequency - Test 100kHz
Max DC Current 145mA
DC Resistance (DCR) 7.4Ohm
Test Frequency 100kHz
Inductance 330μH
Military Standard Not
Current Rating 146mA
Depth 3.2mm
Shielding Shielded
Current Rating (Amps) 146mA
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 7.4Ohm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.122Lx0.122W 3.10mmx3.10mm
Series SD3118
Published 2015
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Weight 453.59237mg
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
