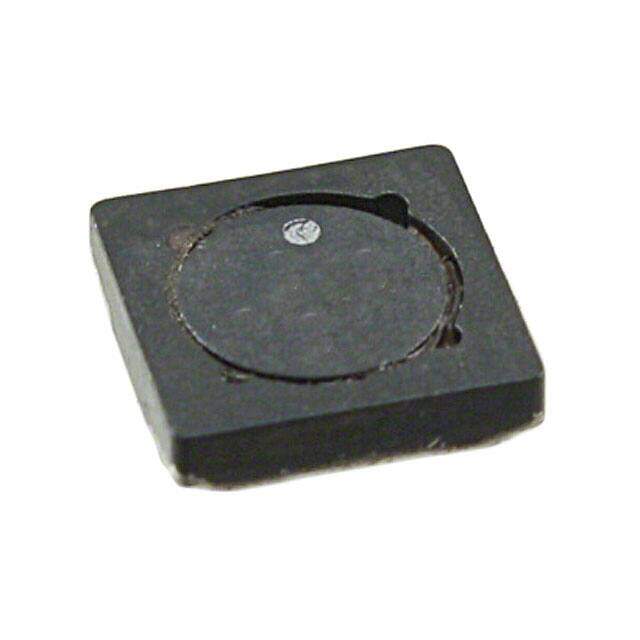

SD12-100-R image
Favorite
SD12-100-R image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description SD Nonstandard 0.205Lx0.205W 5.20mmx5.20mm 10muH
PDF
/
Buying Options
Total Price: USD $2.04
Unit Price: USD $2.0416
≥1 USD $2.0416
≥10 USD $1.73888
≥100 USD $1.602656
≥500 USD $1.432112
≥1000 USD $1.193456
≥3000 USD $1.159382
Inventory: 1180
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown

Dimensions

Width 5.1816mm
Length 5.2mm
Height Seated (Max) 0.047 1.20mm
Height 1.2mm

Technical

RMS Current (Irms) 938mA
Inductance Tolerance 20%
Current - Saturation 818mA
Inductance Frequency - Test 100kHz
Max DC Current 818mA
Current 2.19A
DC Resistance (DCR) 284.4mOhm
Test Frequency 100kHz
Inductance 10μH
Military Standard Not
Current Rating 938mA
Depth 5.2mm
Shielding Shielded
Current Rating (Amps) 938mA
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.205Lx0.205W 5.20mmx5.20mm
Series SD
Published 2007
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C

Physical

Material - Core Ferrite
Weight 907.18474mg
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 16 Weeks
