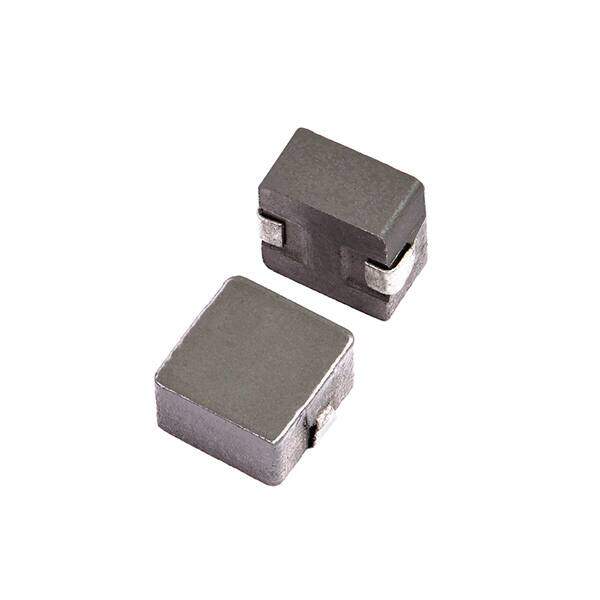

HCM0503-2R2-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 2.2UH 6.8A 25 MOHM SMD
PDF
/
Buying Options
Total Price: USD $0.85
Unit Price: USD $0.8536
≥1 USD $0.8536
≥10 USD $0.72336
≥100 USD $0.657536
≥500 USD $0.618112
≥1000 USD $0.512952
≥3000 USD $0.473475
Inventory: 1124
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Iron Powder
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Series HCM0503
Size / Dimension 0.203Lx0.201W 5.15mmx5.10mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Shielding Shielded
Depth 5.1mm
Current Rating 6.8A
Inductance 2.2μH
Test Frequency 100kHz
DC Resistance (DCR) 25mOhm Max
Max DC Current 6.8A
Current - Saturation 6.5A
Dimensions
Height Seated (Max) 0.118 3.00mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
