ELL-VGG2R2N
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description

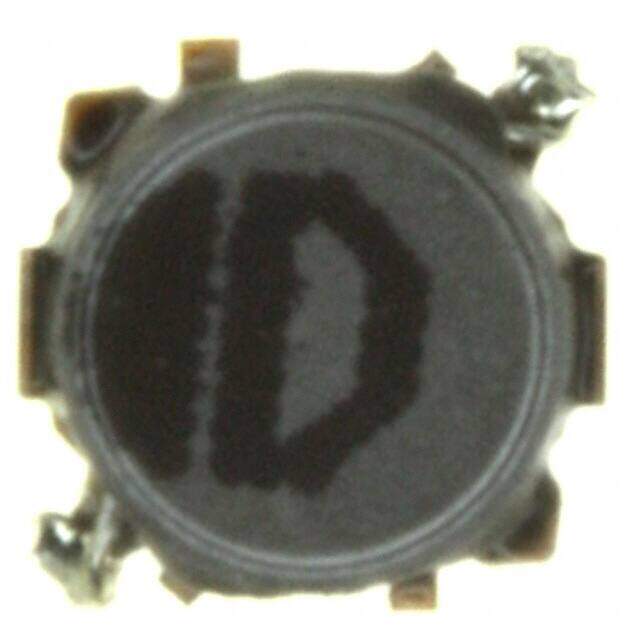

G Nonstandard 0.118Lx0.118W 3.00mmx3.00mm 2.2muH
PDF
/
Buying Options
Total Price: USD $0.08
Unit Price: USD $0.0779
≥1 USD $0.0779
≥10 USD $0.0646
≥100 USD $0.0627
≥500 USD $0.05985
≥1000 USD $0.05795
Inventory: 73179
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Plating Tin
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Number of Pins 2
Weight 40.001177mg
Technical
Packaging Tape & Reel (TR)
Published 2008
Series G
Size / Dimension 0.118Lx0.118W 3.00mmx3.00mm
Tolerance ±30%
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Resistance 92mOhm
Max Operating Temperature 85°C
Min Operating Temperature -55°C
HTS Code 8504.50.80.00
Packing Method TR, Embossed
Shielding YES
Number of Functions 1
Depth 3.2mm
Current Rating 1.6A
Military Standard Not
Inductance 2.2μH
Test Frequency 100kHz
DC Resistance (DCR) 92mOhm
Current 800mA
Max DC Current 1.4A
Inductor Application DC-DC CONVERTER
Terminal Placement DUAL ENDED
Inductance Tolerance 30%
DC Current 1.4A
RMS Current (Irms) 1.4A
Series Resistance 92mOhm
Self Resonant Frequency 100kHz
Dimensions
Height 1.5mm
Height Seated (Max) 0.059 1.50mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
