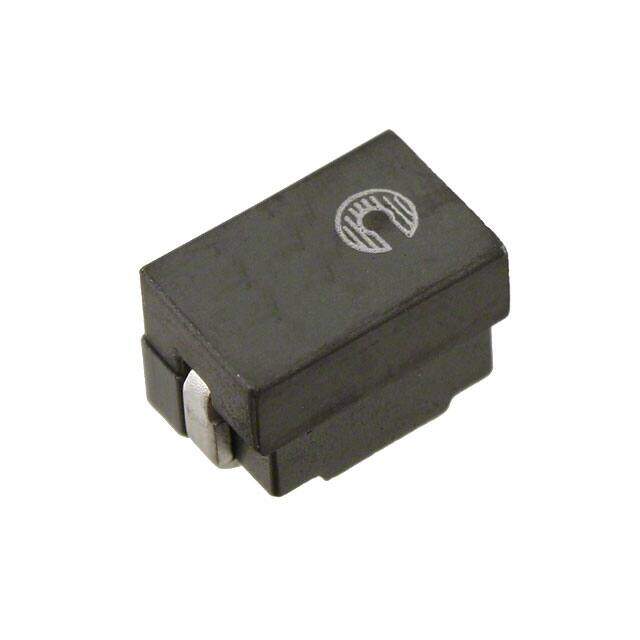

FP1107R1-R30-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FLAT-PAC FP1107 Nonstandard 0.433Lx0.283W 11.00mmx7.20mm 300nH
PDF
/
Buying Options
Total Price: USD $1.71
Unit Price: USD $1.7072
≥1 USD $1.7072
≥10 USD $1.45376
≥100 USD $1.33936
≥500 USD $1.1968
≥1000 USD $0.997392
≥3000 USD $0.968915
Inventory: 423
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 25 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Weight 453.59237mg
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2009
Series FLAT-PAC, FP1107
Size / Dimension 0.433Lx0.283W 11.00mmx7.20mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 55A
Shielding Unshielded
Depth 7.2mm
Current Rating 55A
Military Standard Not
Inductance 300nH
Test Frequency 100kHz
DC Resistance (DCR) 0.29mOhm
Max DC Current 35A
Inductance Frequency - Test 100kHz
Current - Saturation 35A
Self Resonant Frequency 2MHz
Dimensions
Height 7.5mm
Height Seated (Max) 0.295 7.50mm
Length 11mm
Width 7.1882mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
