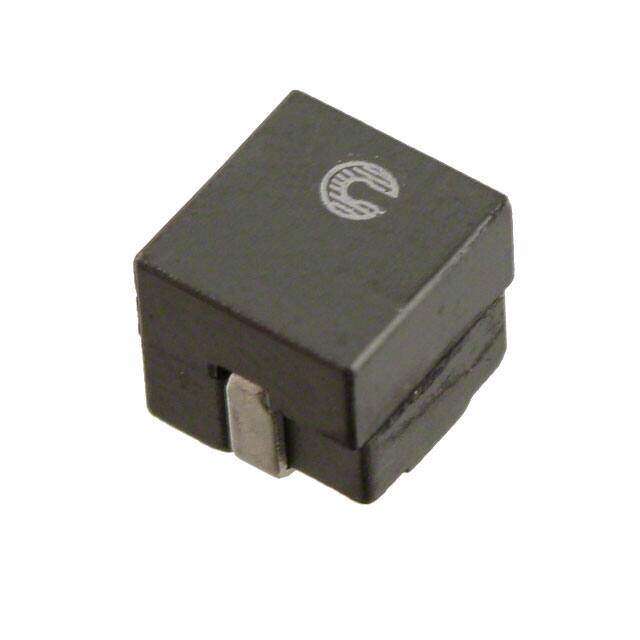

FP0807R1-R20-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FLAT-PAC FP0807 Nonstandard 0.299Lx0.291W 7.60mmx7.40mm 200nH
PDF
/
Buying Options
Total Price: USD $0.91
Unit Price: USD $0.905941
≥1 USD $0.905941
≥10 USD $1.102
≥100 USD $1.0678
≥500 USD $1.03265
≥1000 USD $0.99845
Inventory: 11403
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Weight 453.59237mg
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series FLAT-PAC, FP0807
Size / Dimension 0.299Lx0.291W 7.60mmx7.40mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 49A
Shielding Unshielded
Depth 7.6mm
Current Rating 49A
Inductance 200nH
Test Frequency 100kHz
DC Resistance (DCR) 0.5mOhm
Max DC Current 37A
Inductance Frequency - Test 100kHz
Current - Saturation 38A
Dimensions
Height 7mm
Height Seated (Max) 0.276 7.00mm
Length 7.5946mm
Width 7.3914mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
