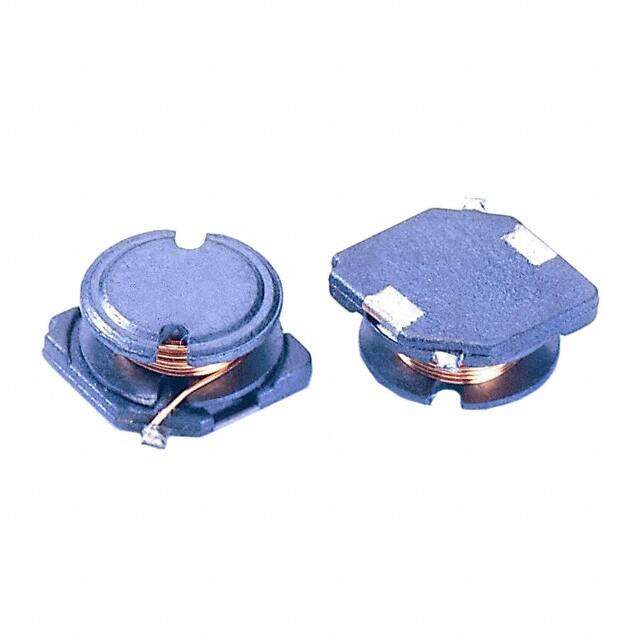

SCB73F-2R2
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Wirewound Active 2009 fixed air core inductor -40C~125C 1kHz 32mOhm Max 2.2muH
PDF
/
Inventory: 1479
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2009
Series SCB73F
Size / Dimension 0.291Lx0.291W 7.40mmx7.40mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 4.4A
Shielding Unshielded
Current Rating 4.4A
Inductance 2.2μH
Test Frequency 1kHz
DC Resistance (DCR) 32mOhm Max
Inductance Frequency - Test 1kHz
Current - Saturation 2.4A
Dimensions
Height Seated (Max) 0.138 3.50mm
Length 7.3914mm
Width 7.3914mm
Compliance
RoHS Status ROHS3 Compliant
