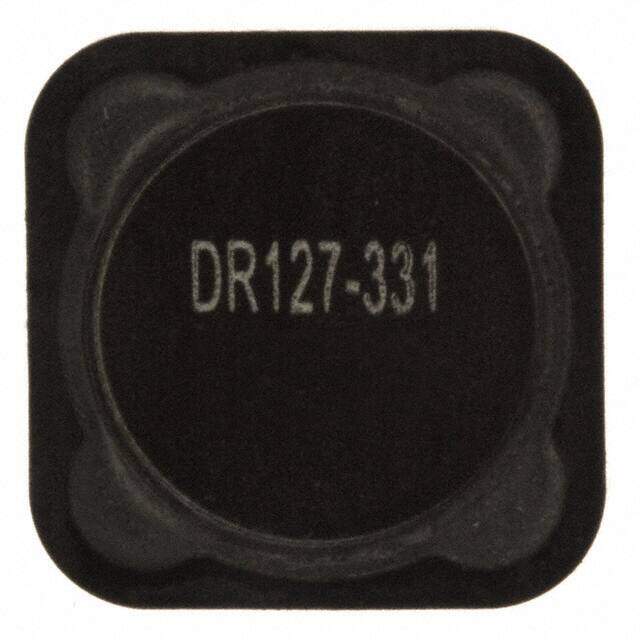

DR127-331-R image
Favorite
DR127-331-R image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description DR Nonstandard 0.492Lx0.492W 12.50mmx12.50mm 330muH
PDF
/
Buying Options
Total Price: USD $1.02
Unit Price: USD $1.0208
≥1 USD $1.0208
≥10 USD $0.85976
≥100 USD $0.781792
≥500 USD $0.734976
≥1000 USD $0.60984
Inventory: 769
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Width 12.5mm
Length 12.5mm
Height Seated (Max) 0.315 8.00mm
Height 8mm

Technical

Self Resonant Frequency 100kHz
RMS Current (Irms) 1.04A
DC Current 1.04A
Inductance Tolerance 20%
Current - Saturation 2.01A
Inductance Frequency - Test 100kHz
Max DC Current 2.01A
DC Resistance (DCR) 574mOhm
Test Frequency 100kHz
Inductance 330μH
Military Standard Not
Current Rating 1.04A
Depth 12.5mm
Shielding Shielded
Current Rating (Amps) 1.04A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.492Lx0.492W 12.50mmx12.50mm
Series DR
Published 2011
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Weight 5.443108g
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 7 Weeks
