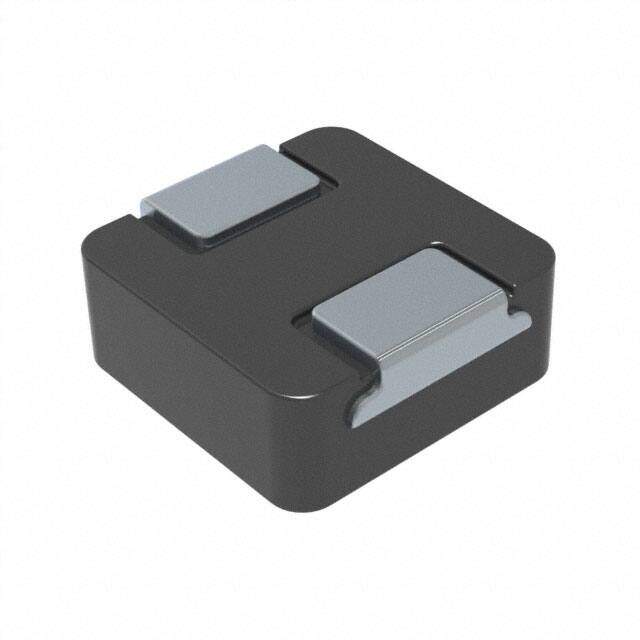

VCMI105T-680MS5
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Active Tape & Reel (TR) Metal fixed air core inductor -55C~155C 100kHz 211mOhm Max 68muH
PDF
/
Buying Options
Total Price: USD $1.55
Unit Price: USD $1.5488
≥1 USD $1.5488
≥10 USD $1.31472
≥100 USD $1.211584
≥500 USD $1.082576
≥1000 USD $0.902176
≥3000 USD $0.876339
Inventory: 516
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Metal
Technical
Operating Temperature -55°C~155°C
Packaging Tape & Reel (TR)
Series VCMI105T
Size / Dimension 0.427Lx0.394W 10.85mmx10.00mm
Tolerance ±3%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Current Rating (Amps) 3.2A
Shielding Unshielded
Inductance 68μH
DC Resistance (DCR) 211mOhm Max
Inductance Frequency - Test 100kHz
Current - Saturation 3.9A
Dimensions
Height Seated (Max) 0.197 5.00mm
Compliance
RoHS Status ROHS3 Compliant
