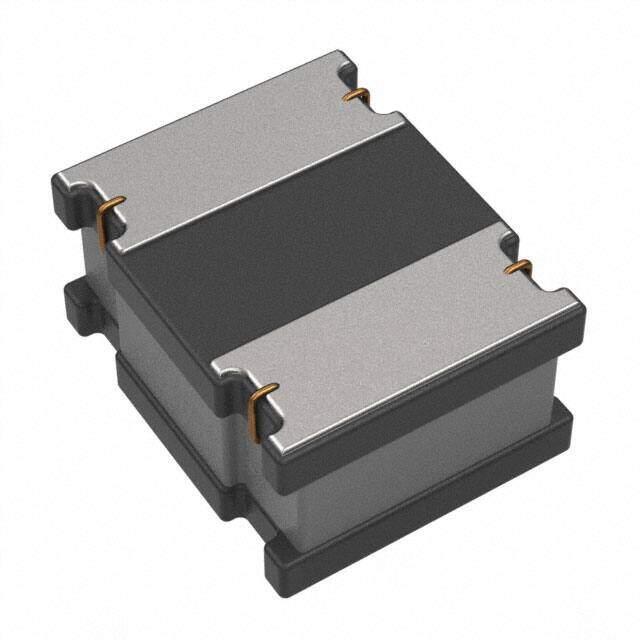

SDEM20161T-1R0MS
RoHS
RoHS compliant
RoHS compliantPackage 0806 (2016 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Active Tape & Reel (TR) Metal fixed air core inductor -55C~125C 1MHz 72mOhm Max 1muH
PDF
/
Buying Options
Total Price: USD $0.21
Unit Price: USD $0.2112
≥1 USD $0.2112
≥10 USD $0.17336
≥100 USD $0.159808
≥500 USD $0.146608
≥1000 USD $0.12936
≥3000 USD $0.125312
Inventory: 4595
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Surface Mount
Package / Case 0806 (2016 Metric)
Material - Core Metal
Technical
Operating Temperature -55°C~125°C
Inductance Frequency - Test 1MHz
DC Resistance (DCR) 72mOhm Max
Inductance 1μH
Shielding Unshielded
Current Rating (Amps) 2.7A
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.079Lx0.063W 2.00mmx1.60mm
Series SDEM20161T
Packaging Tape & Reel (TR)
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.039 1.00mm
