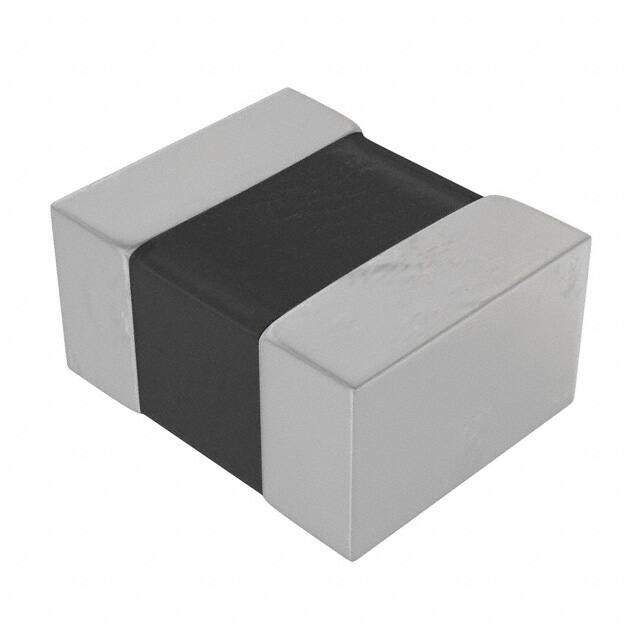

74479876210
RoHS
RoHS compliant
RoHS compliantPackage 0806 (2016 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PMI 0806 (2016Metric) 0.079Lx0.063W 2.00mmx1.60mm 1muH
PDF
/
Buying Options
Total Price: USD $6.62
Unit Price: USD $6.62055
≥1 USD $6.62055
≥10 USD $5.4321
≥100 USD $5.26205
≥500 USD $5.09295
≥1000 USD $4.9229
Inventory: 1165
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 1.6002mm
Length 2.0066mm
Height Seated (Max) 0.039 1.00mm
Height 1mm
Technical
RMS Current (Irms) 1.5A
Inductance Tolerance 20%
Q Factor 20
Current - Saturation 1.5A
Inductance Frequency - Test 1MHz
Q @ Freq 20 @ 1MHz
Frequency - Self Resonant 80MHz
Max DC Current 1.5A
DC Resistance (DCR) 70mOhm
Test Frequency 1MHz
Inductance 1μH
Case Code (Imperial) 0806
Case Code (Metric) 2016
Current Rating 1.5A
Shielding Unshielded
Current Rating (Amps) 1.5A
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Multilayer
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.079Lx0.063W 2.00mmx1.60mm
Series WE-PMI
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Weight 32.006612mg
Supplier Device Package 0806 (2016 Metric)
Package / Case 0806 (2016 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
