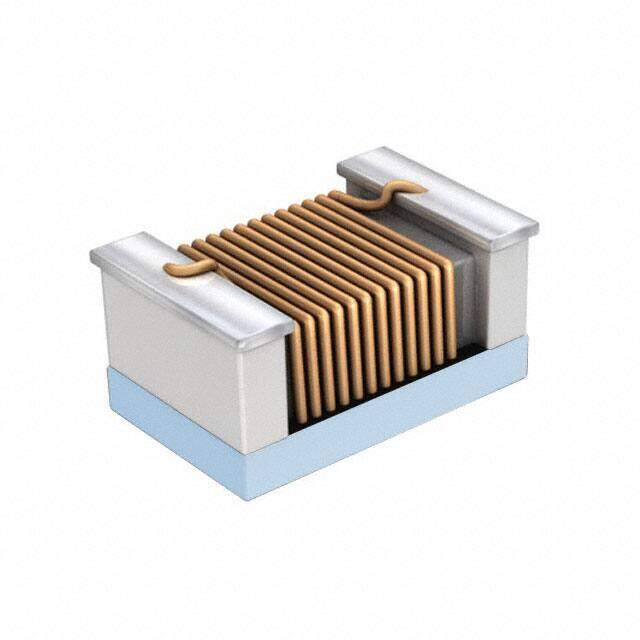

0402HS-2N2ECTS
RoHS
RoHS compliant
RoHS compliantPackage 0402 (1005 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 2.2NH 960MA 70MOHM
PDF
/
Buying Options
Total Price: USD $0.14
Unit Price: USD $0.1408
≥1 USD $0.1408
≥10 USD $0.11352
≥100 USD $0.104896
≥500 USD $0.096272
≥1000 USD $0.084832
≥3000 USD $0.082227
Inventory: 1597
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.024 0.60mm
Technical
Inductance Frequency - Test 250MHz
Q @ Freq 19 @ 250MHz
Frequency - Self Resonant 10.8GHz
DC Resistance (DCR) 70mOhm
Inductance 2.2nH
Shielding Unshielded
Current Rating (Amps) 960mA
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±0.2nH
Size / Dimension 0.050Lx0.030W 1.27mmx0.76mm
Series 0402HS
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ceramic
Package / Case 0402 (1005 Metric)
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
Alternative Model
